Home >> Ford >> 1985 >> Ranger 2WD V6-171 2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

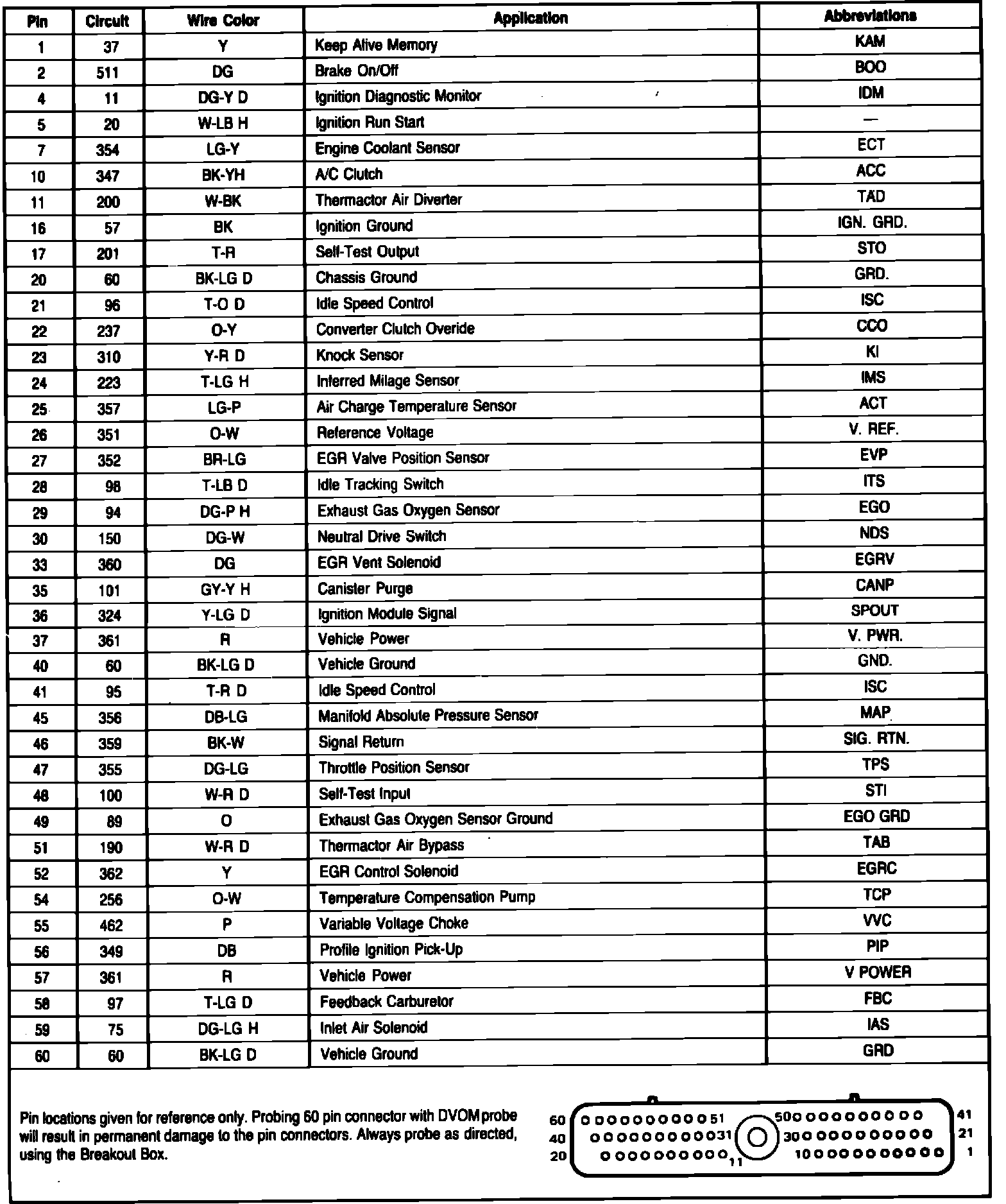

Fig. 126 EEC-IV connector terminal identification. 1985 V6-171:
