Home >> Eagle >> 1997 >> Vision V6-3.5L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

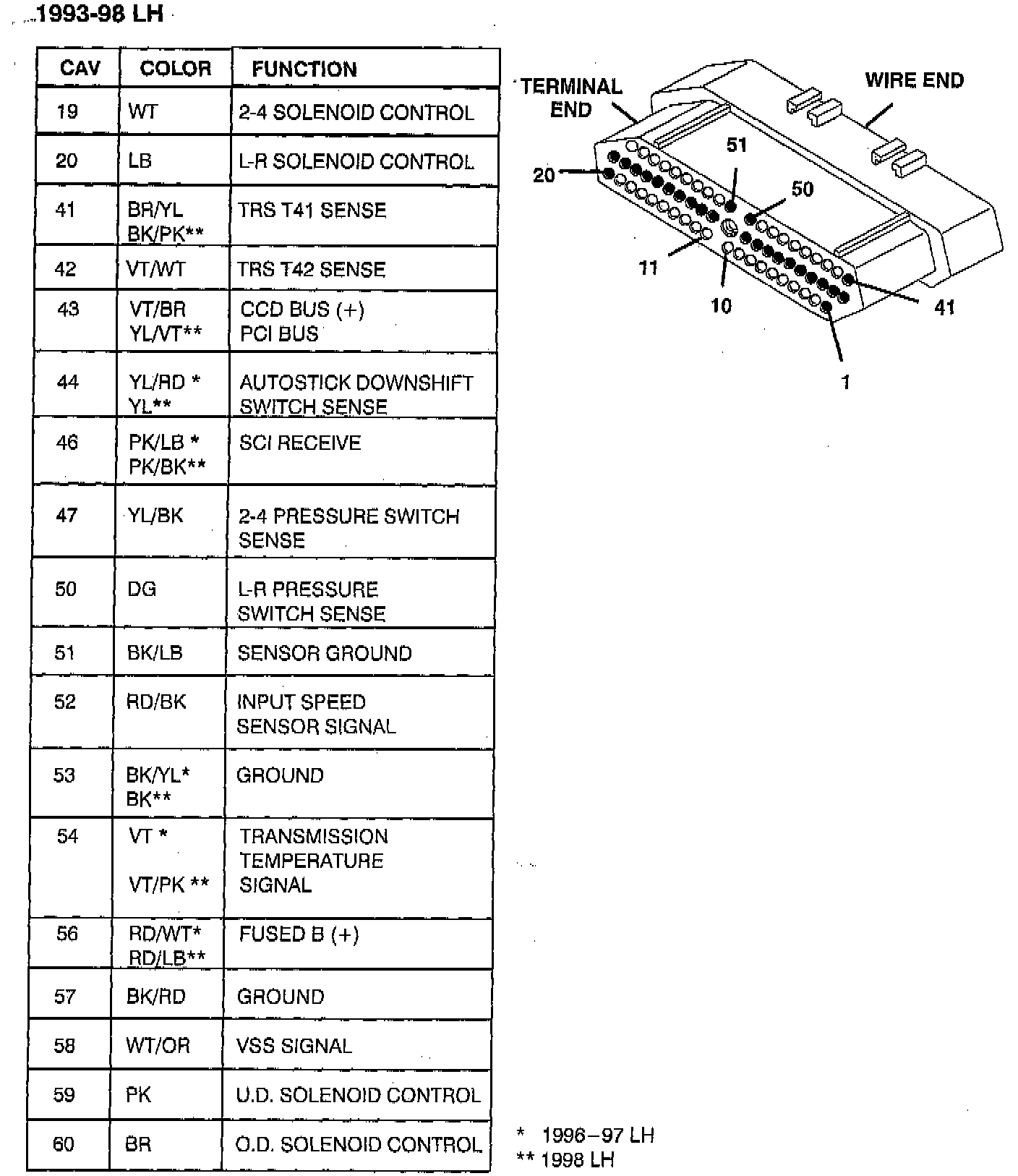

Part 1 Of 2:

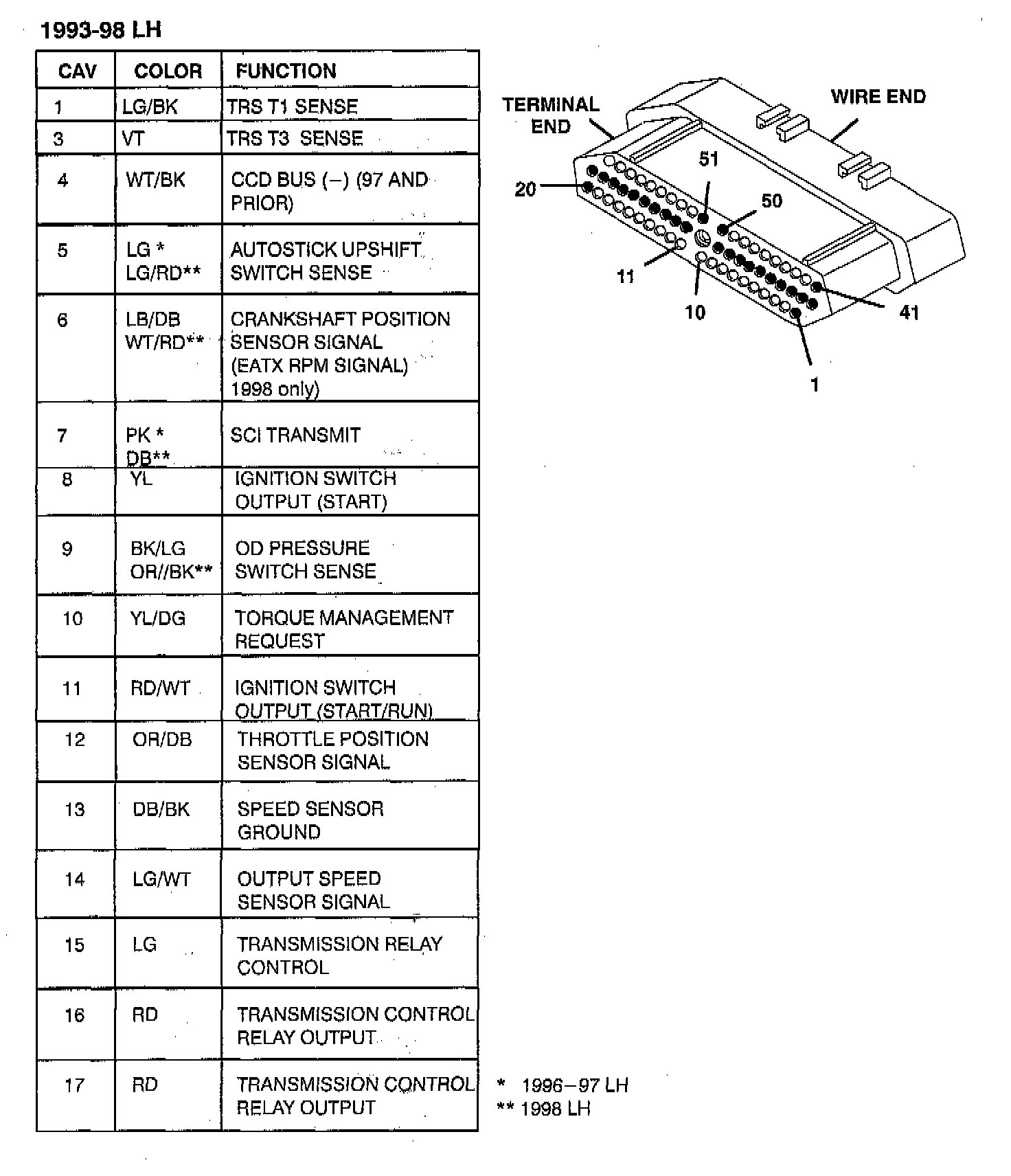

Part 2 Of 2:

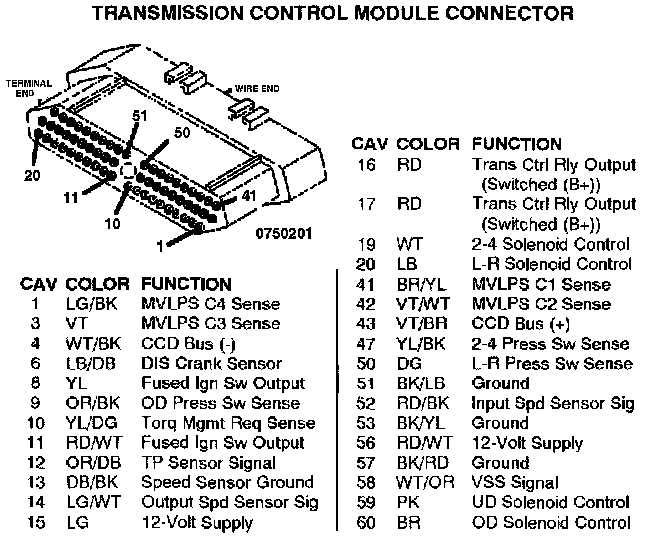

Transmission Control Module Connector:
