Home >> Eagle >> 1996 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Diagrams

Main Relay (Computer/Fuel System): Diagrams

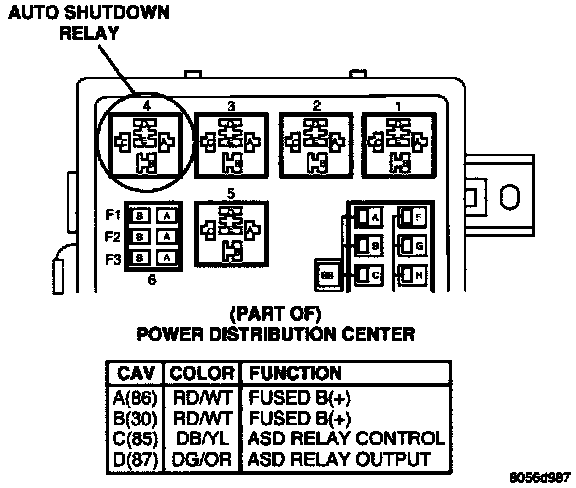

Auto Shutdown Relay:
