Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

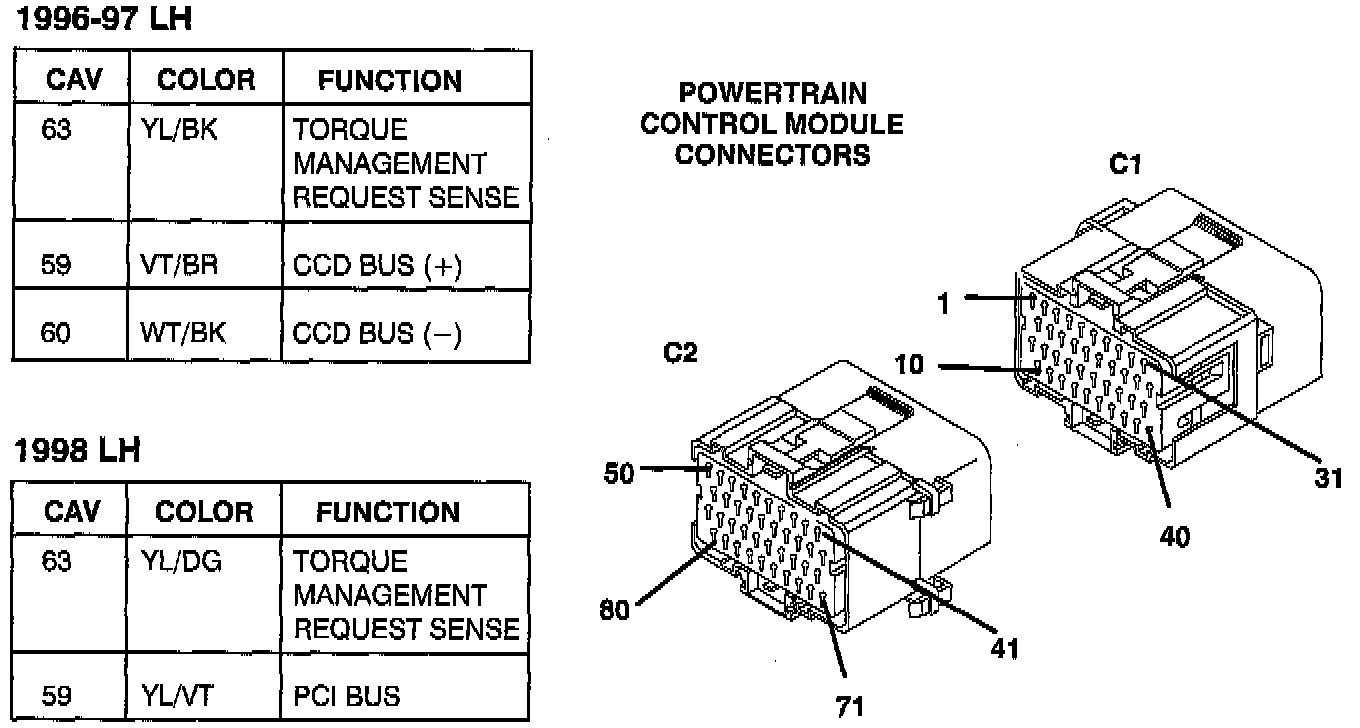

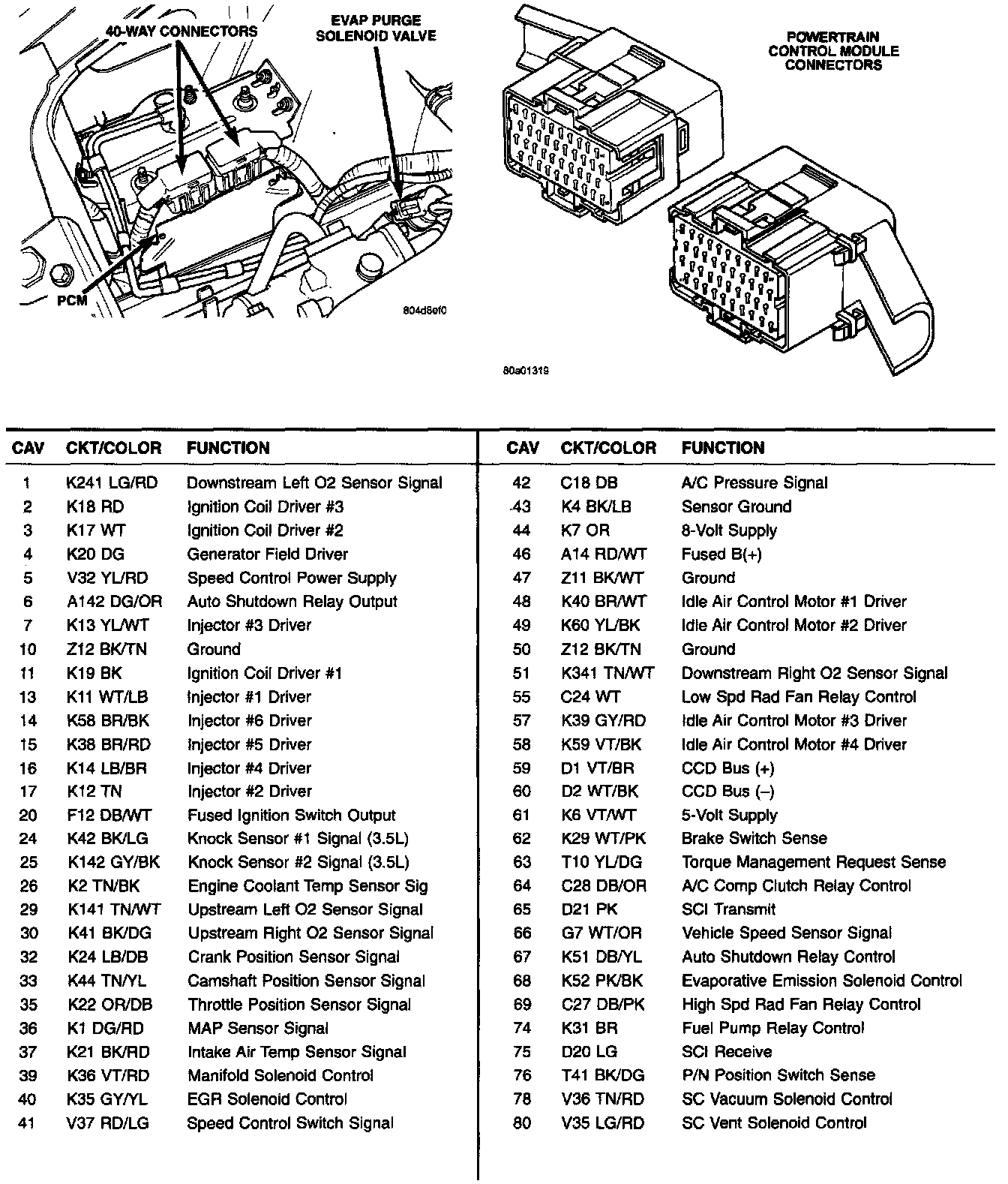

PCM Connector View:
