Eagle
>>
1995
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

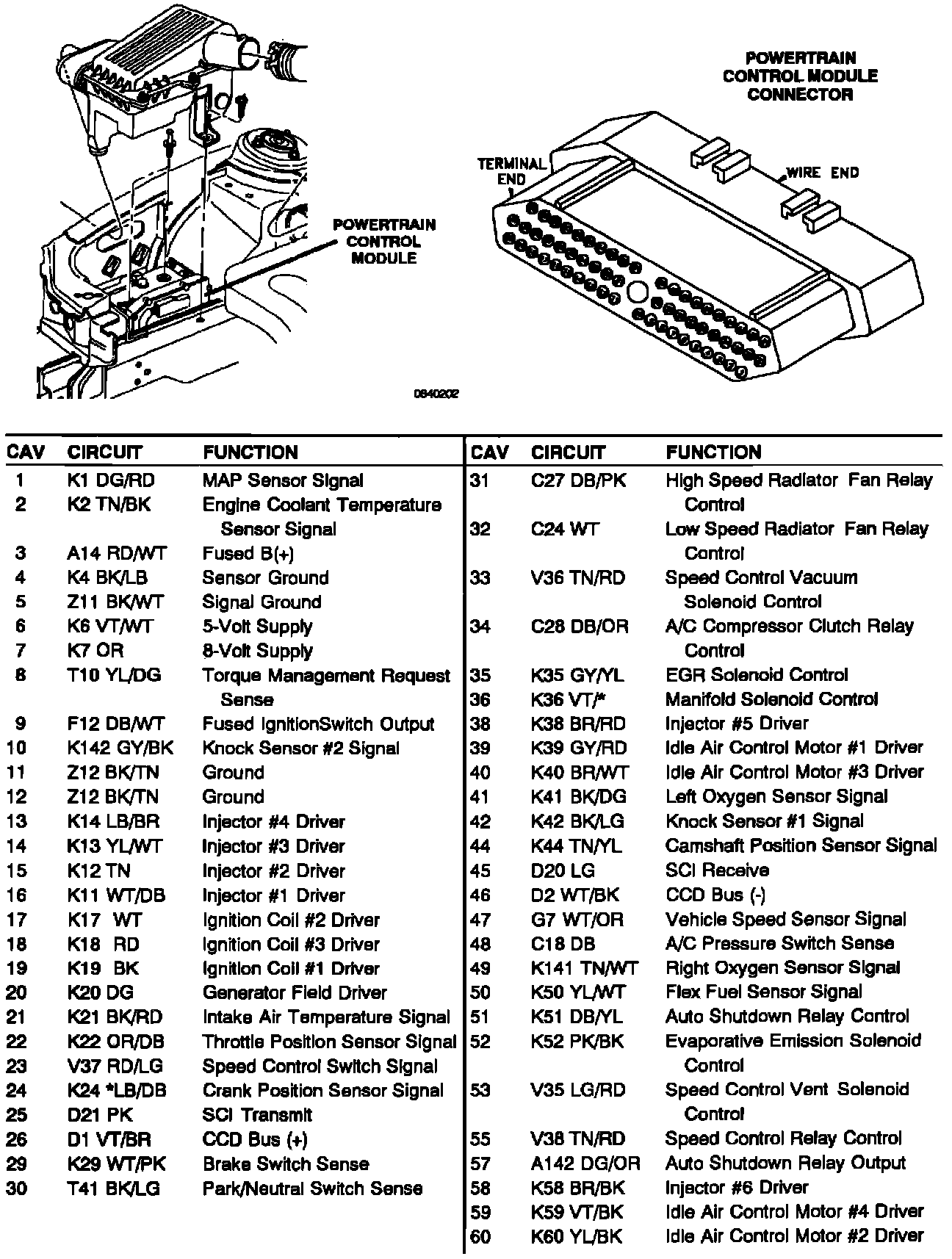

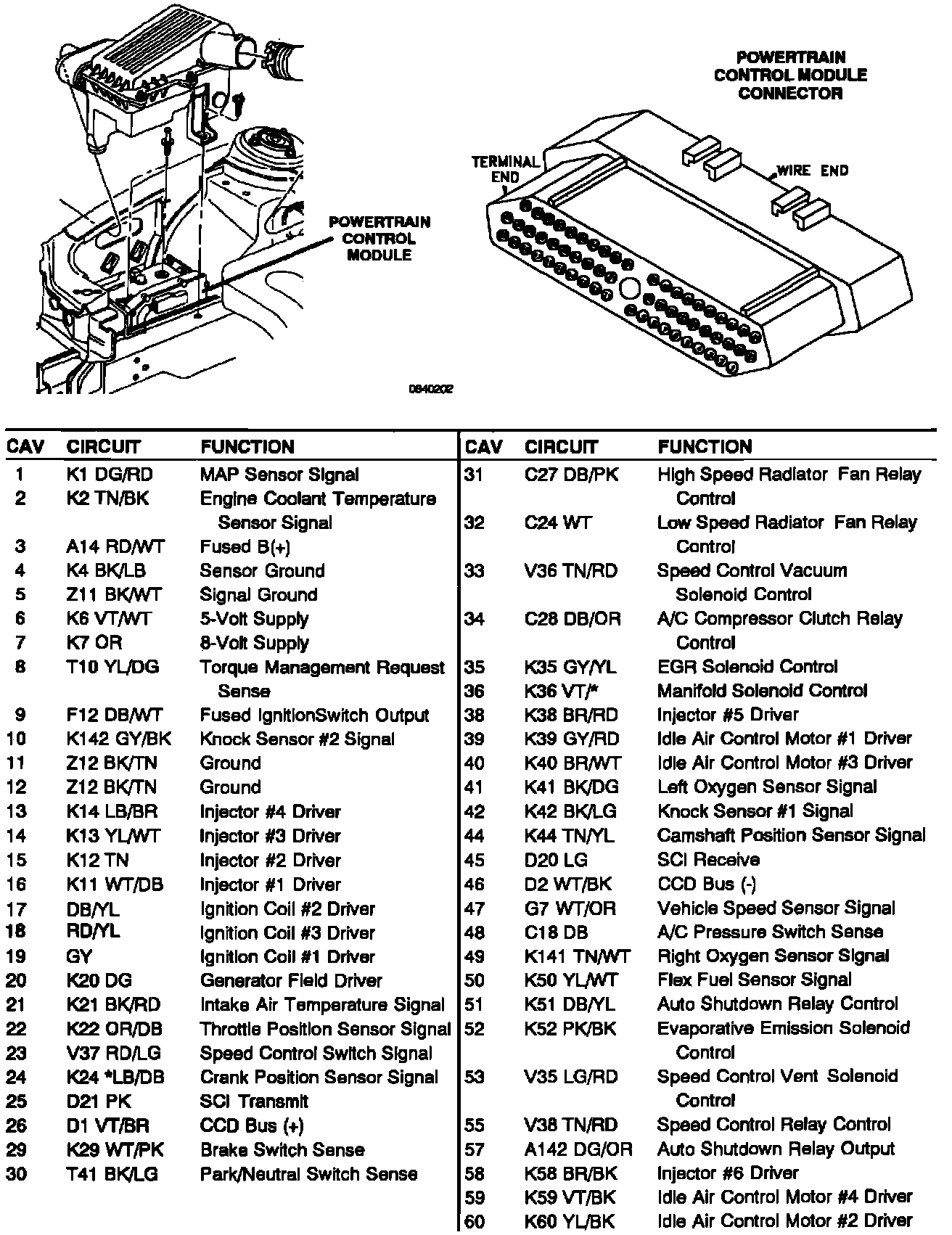

PCM Location And Pin Identification:

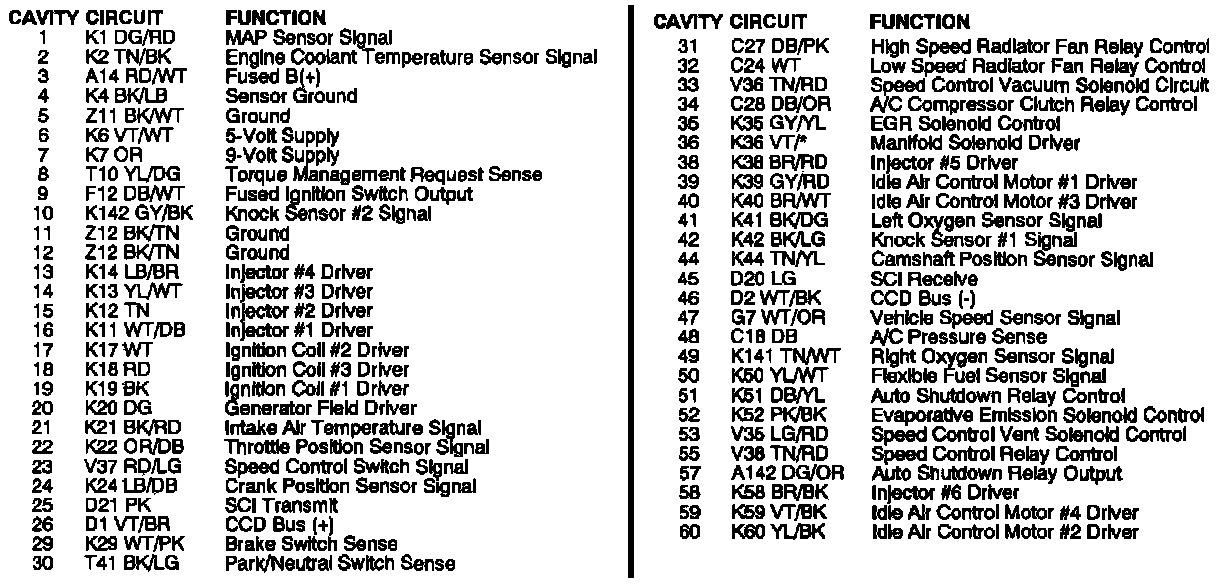

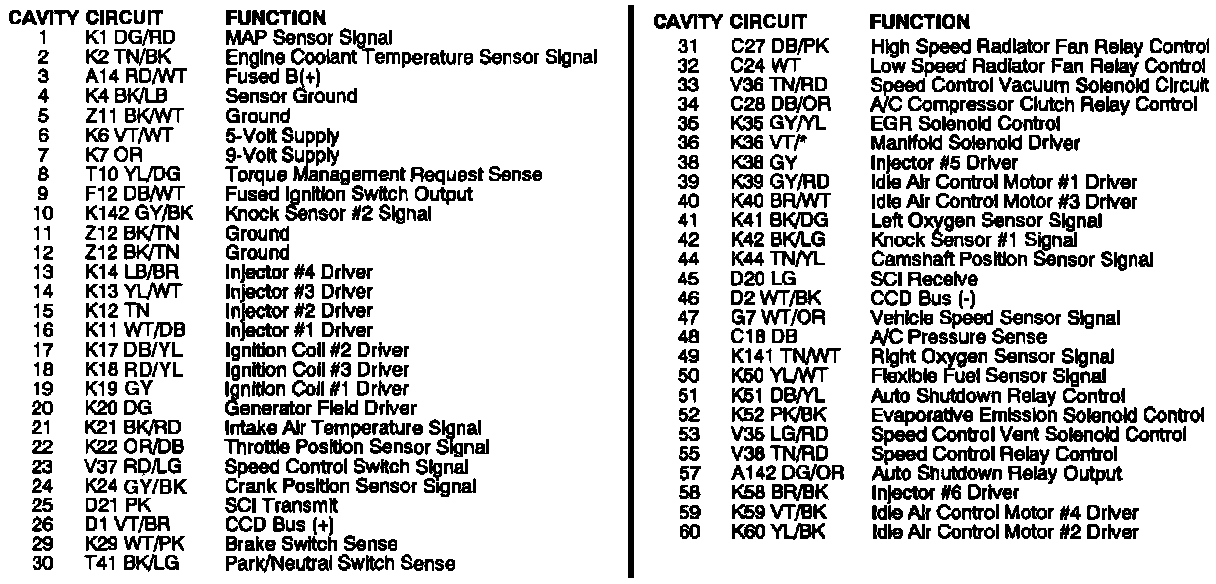

PCM Location and Pin Identification:
Part 1 Of 1:
Part 1 Of 1:
