Body Control Module

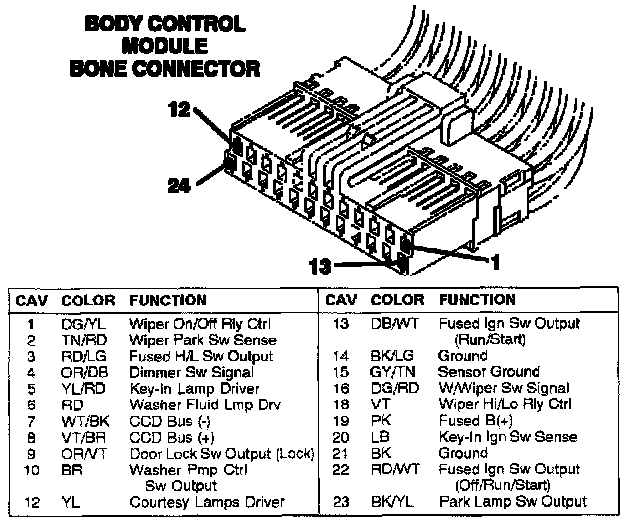

Bone Color Connector Pinout:

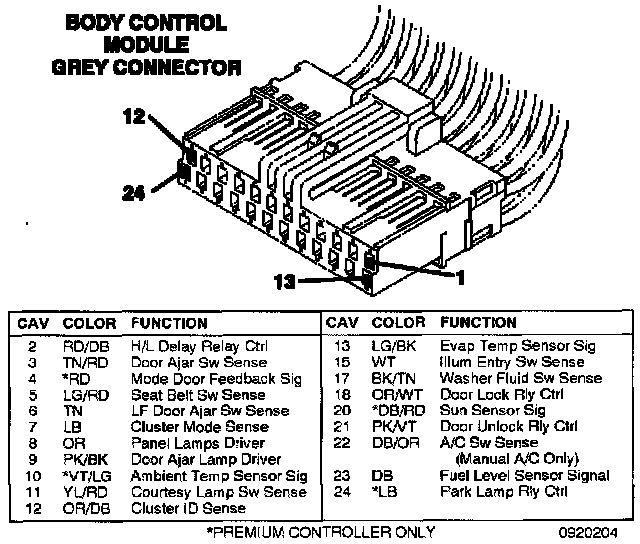

Grey Color Connector Pinout:

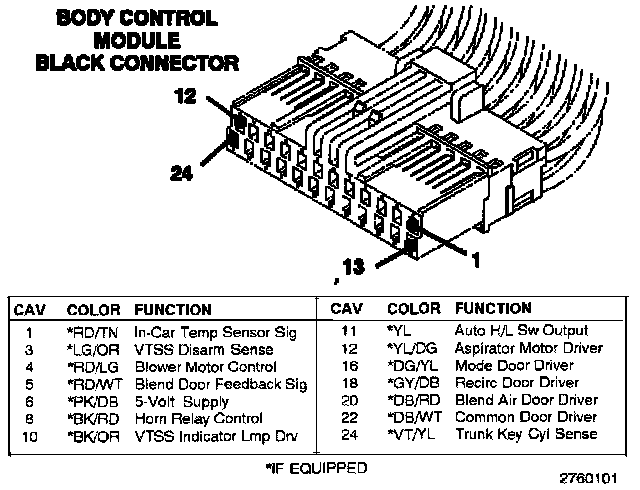

Black Color Connector Pinout:
