Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

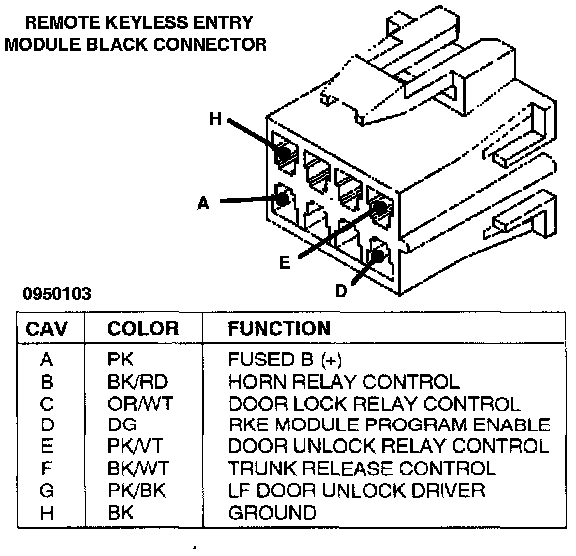

Remote Keyless Entry (RKE) Module Black Connector:

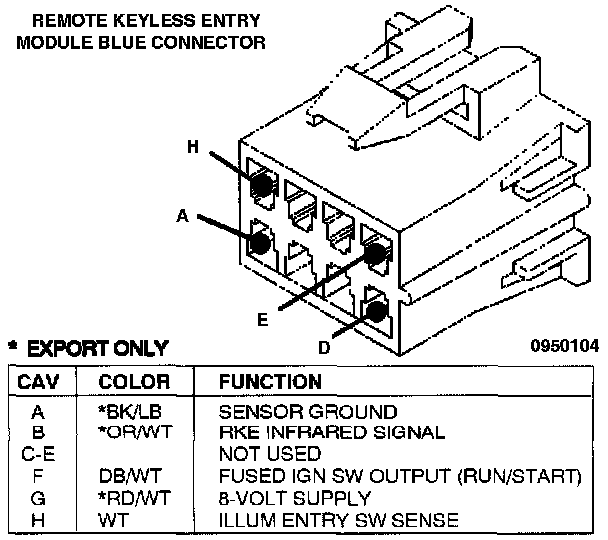

Remote Keyless Entry (RKE) Module Blue Connector:
