Body Control Module

Bone Color Connector Pinout:



Grey Color Connector Pinout:



Black Color Connector Pinout:

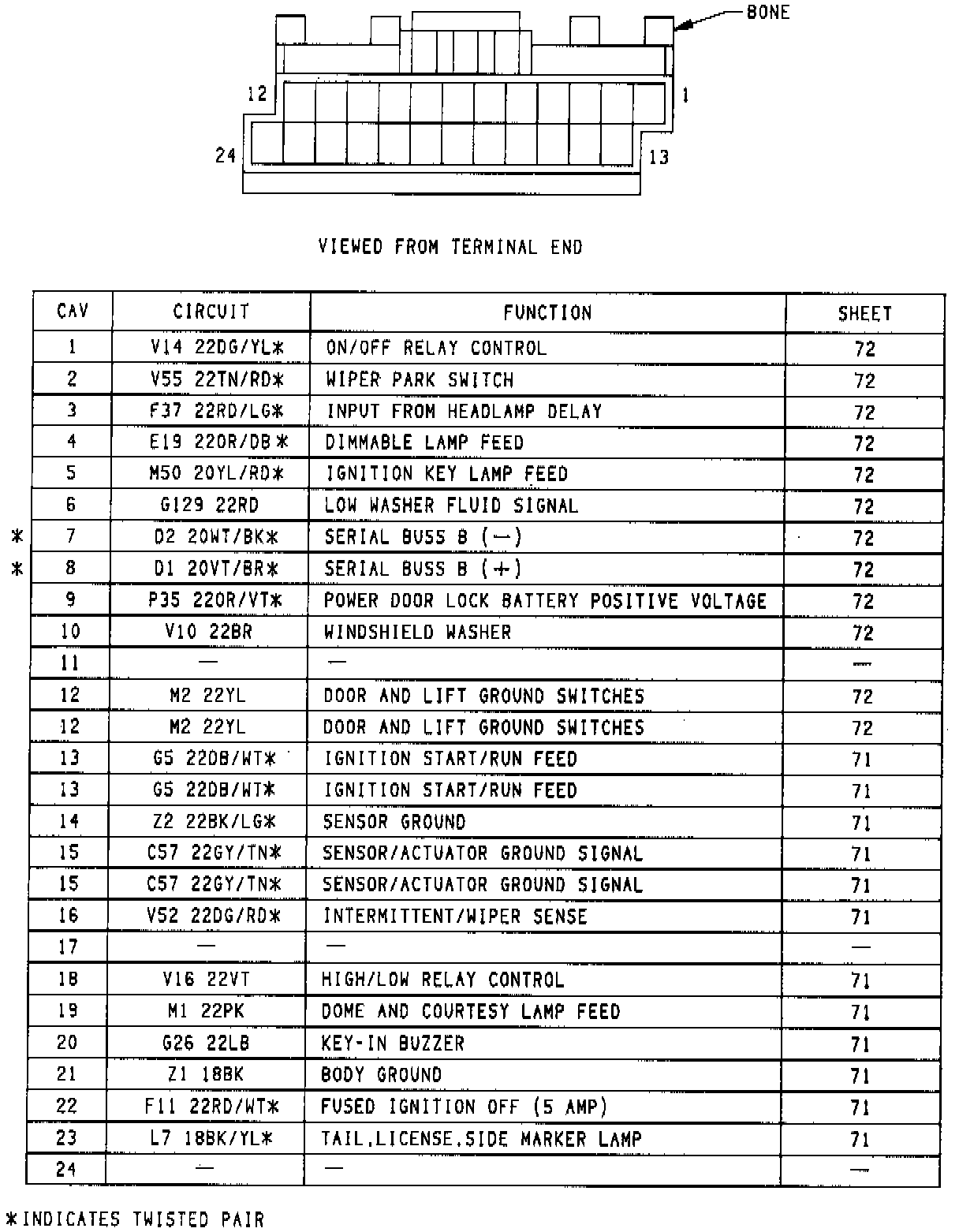

Bone Color Connector With Circuit ID:

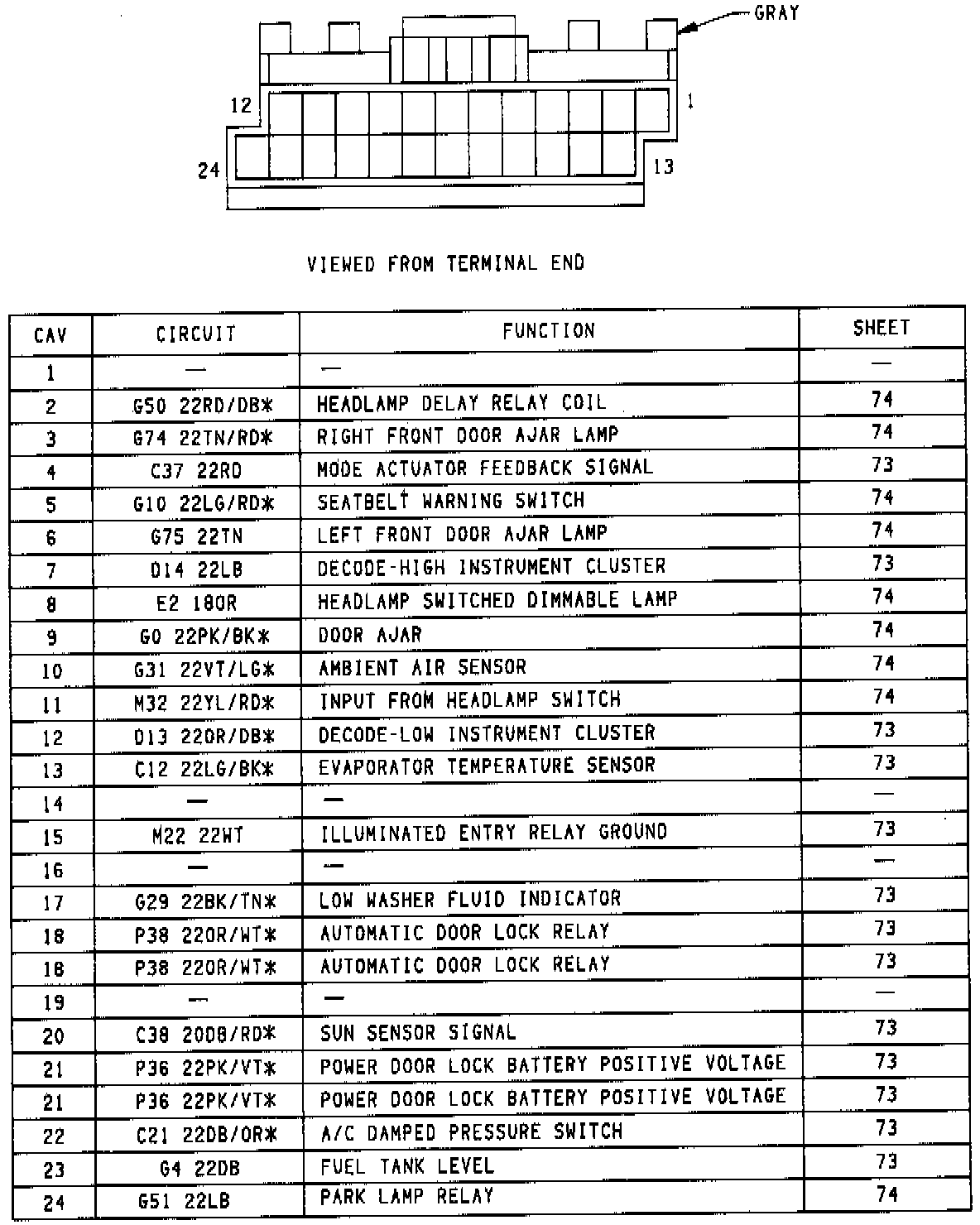

Gray Color Connector With Circuit ID:

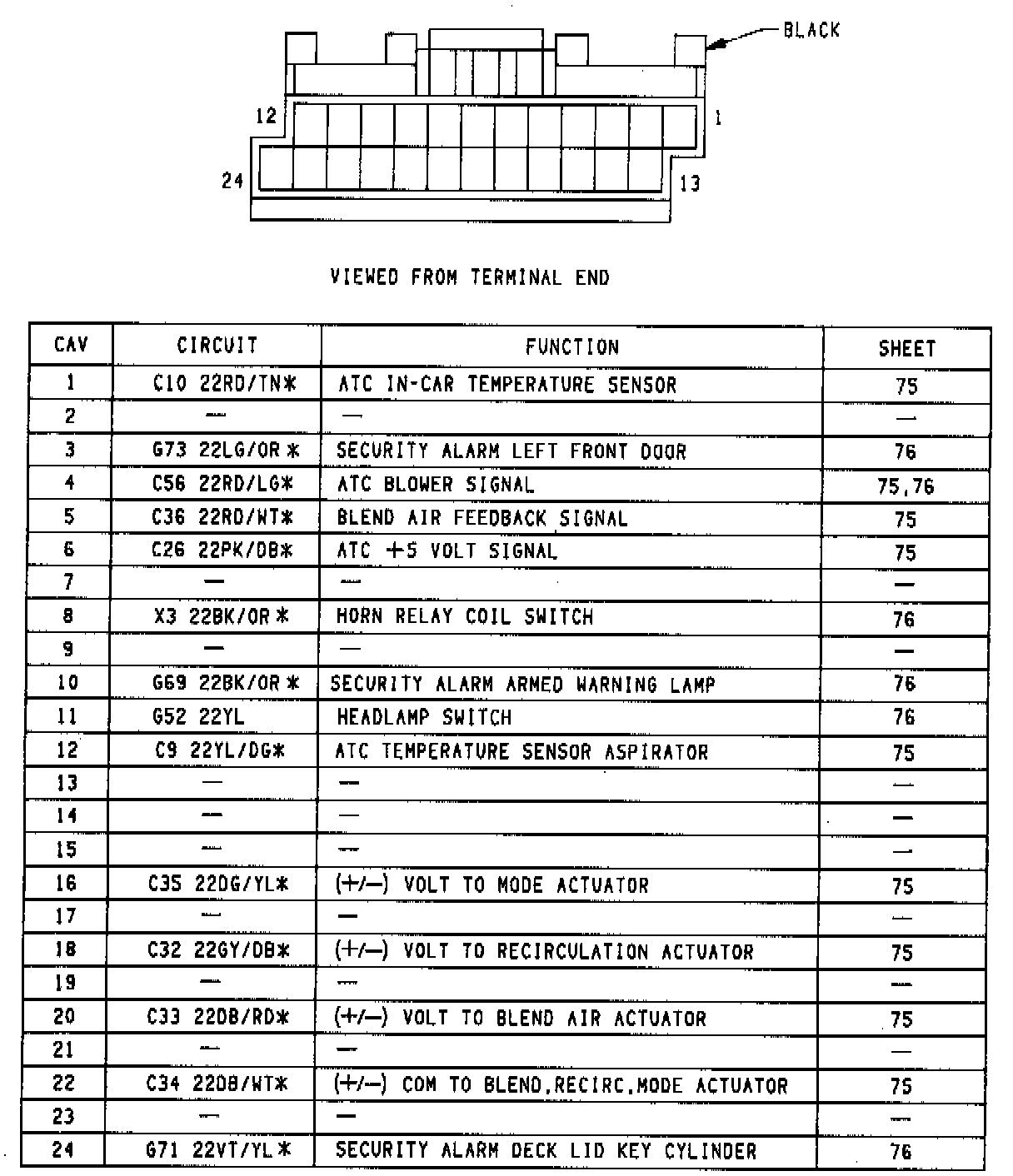

Black Color Connector With Circuit ID:
