Ignition Control Module: Locations

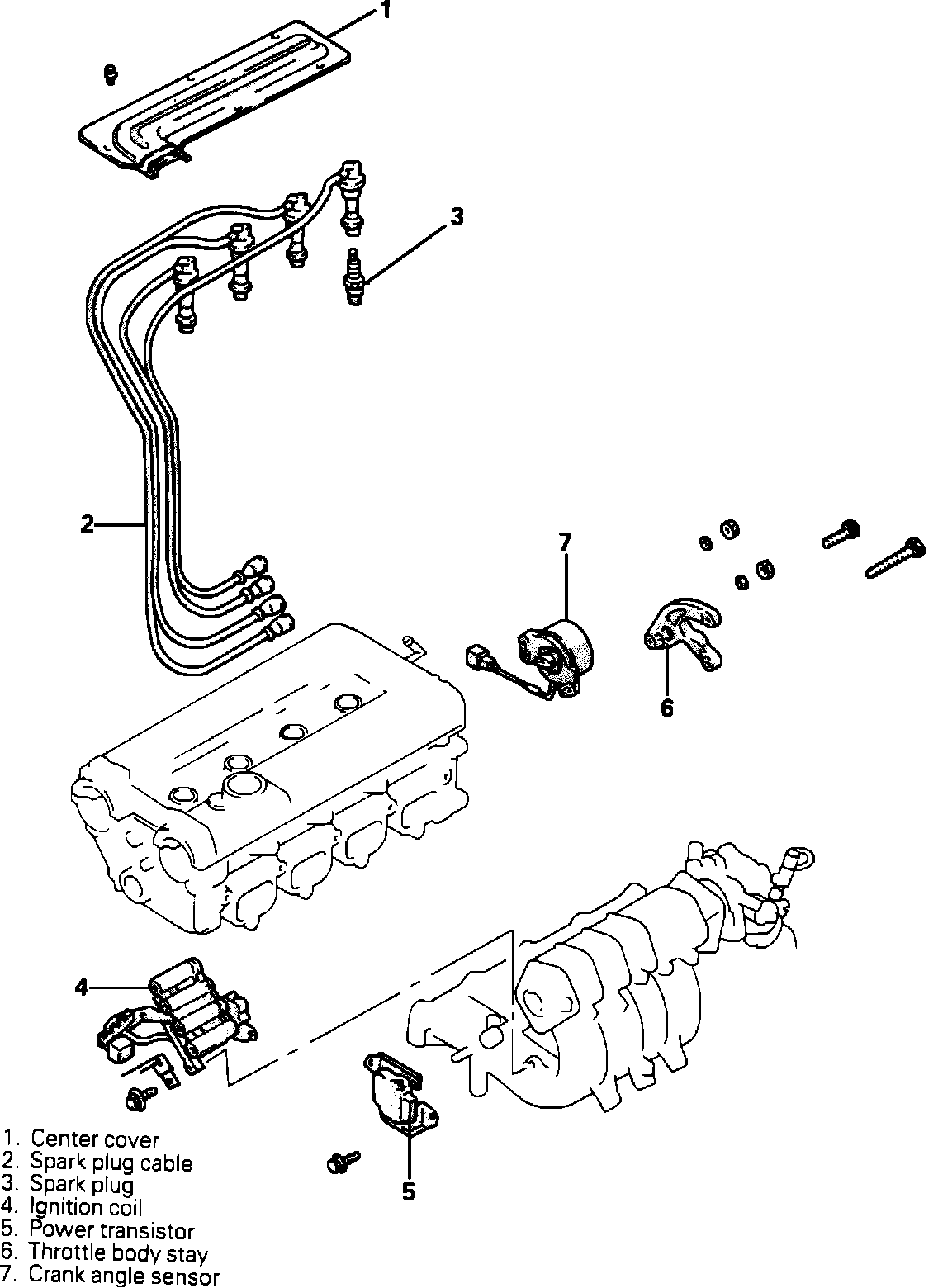

Component Overview:






The power transistor is located on the side of the intake manifold.
