Vehicle Speed Sensor: Service and Repair

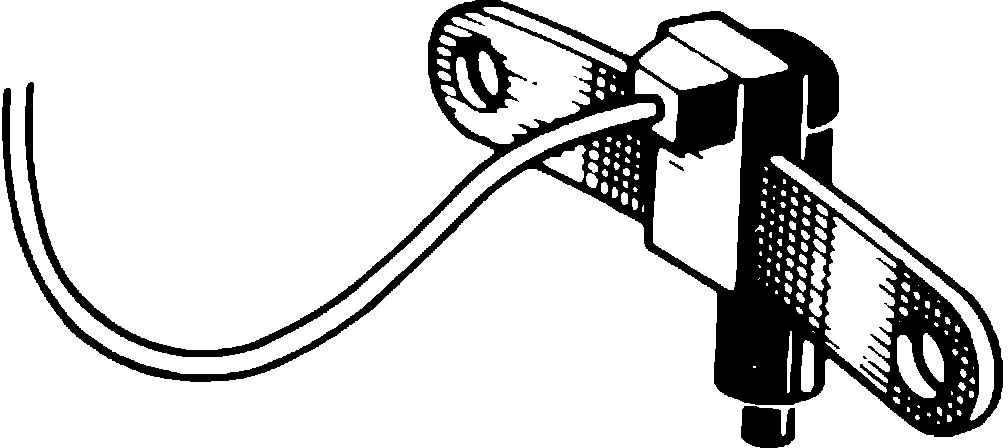

Fig. 9 Speed Sensor:

1. Remove speed sensor attaching screws.
2. Disconnect electrical connector, then remove sensor, Fig. 9, from left hand side of transaxle converter housing.
3. Reverse procedure to install. Torque attaching screws to 71 inch lbs.
