Eagle L6-258 4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

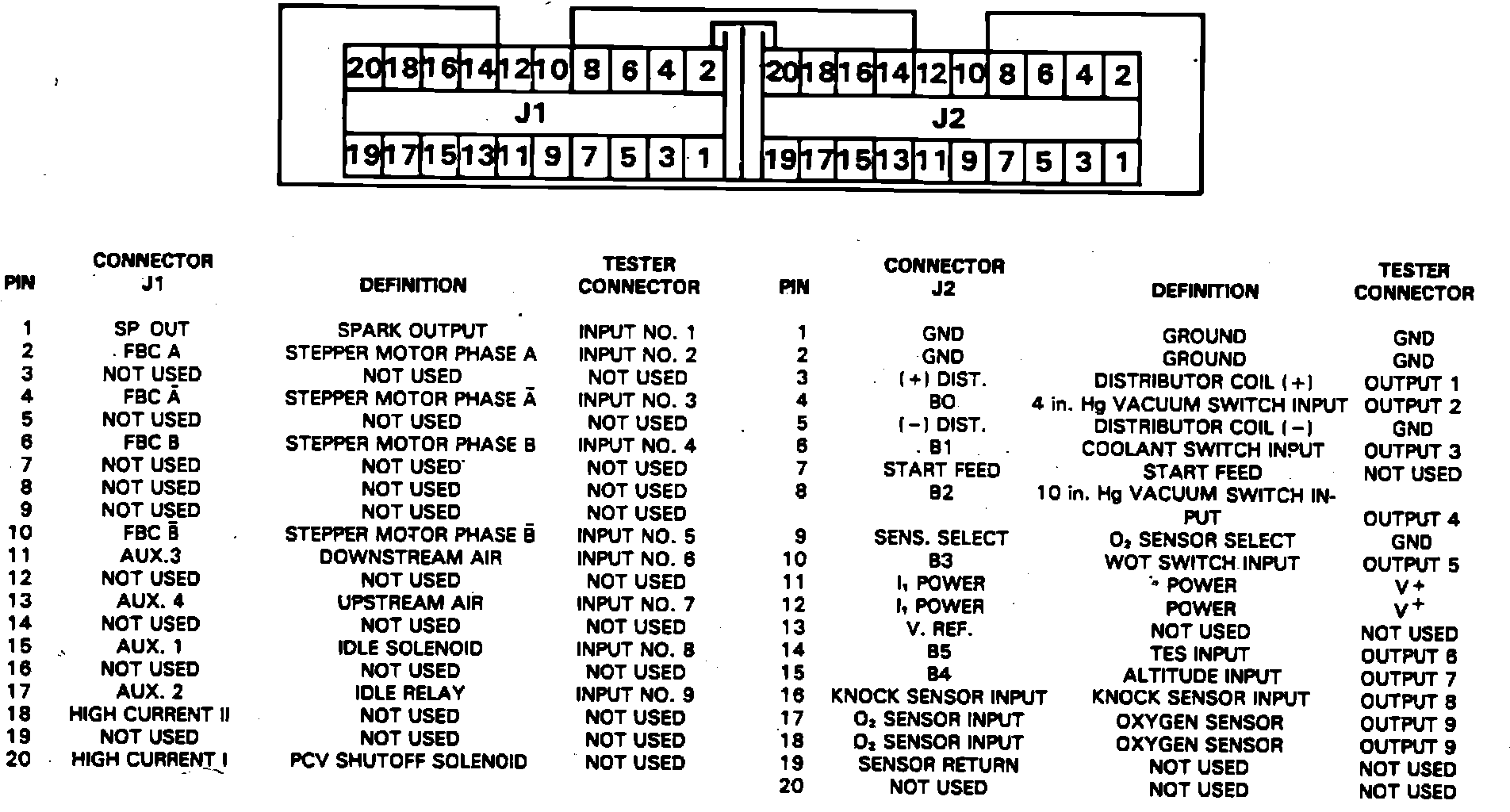

MCU harness connectors:
