Ignition Lock: Service and Repair

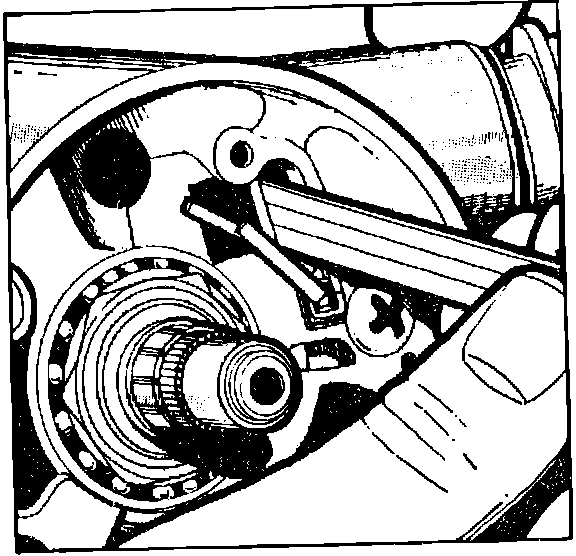

Fig. 1 Lock cylinder removal:

1. Remove turn signal switch as described further on.
2. Place key lock in "Lock" position and using a small flat blade screwdriver to depress the lock cylinder retaining tab, remove the lock cylinder.
3. Reverse procedure to install.
