Home >> Eagle >> 1982 >> Eagle L4-151 2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Drive Belt

Drive Belt

NOTE: Use a strand tension gauge. Measurements are in pounds.

NOTE: A belt in operation 10 minutes is considered a used belt.

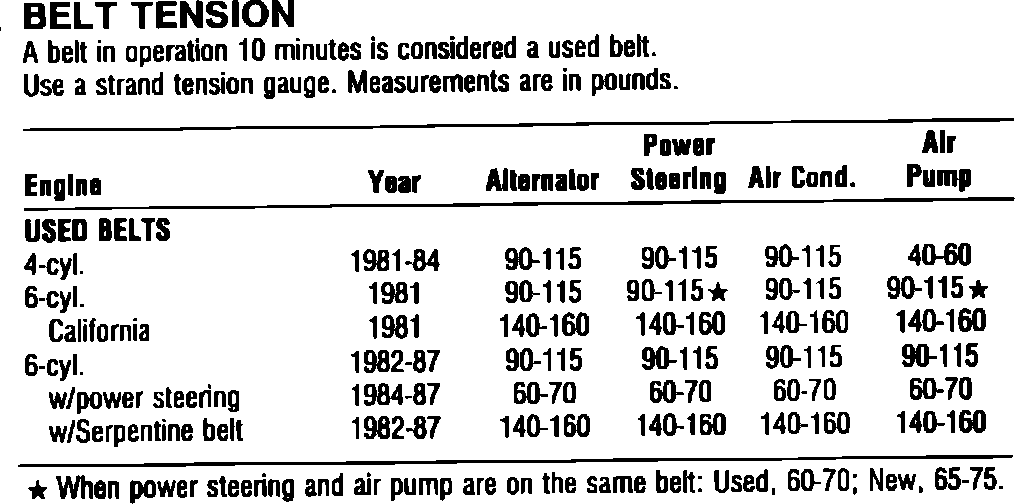

USED BELTS

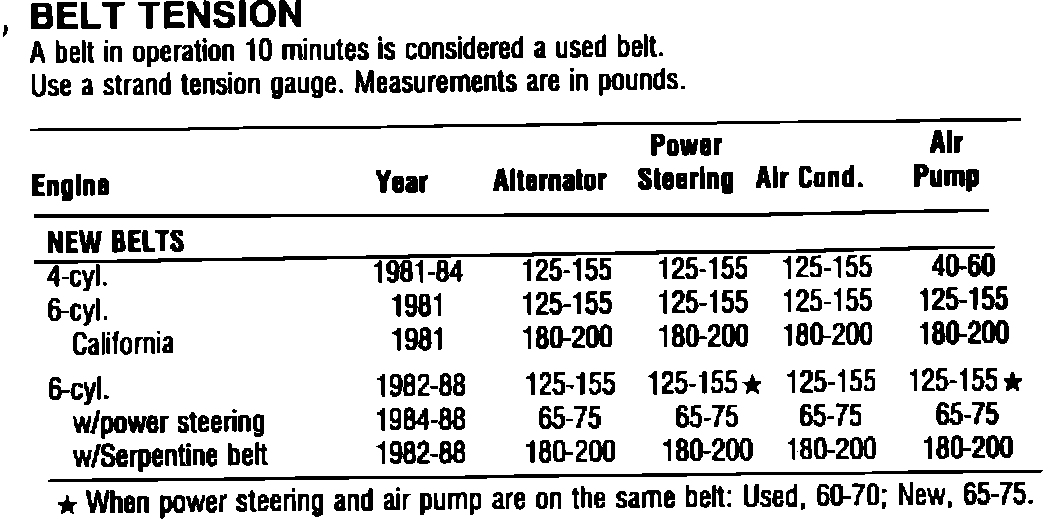

NEW BELTS
