Home >> Eagle >> 1982 >> Eagle L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Non-Tilt

Non-Tilt

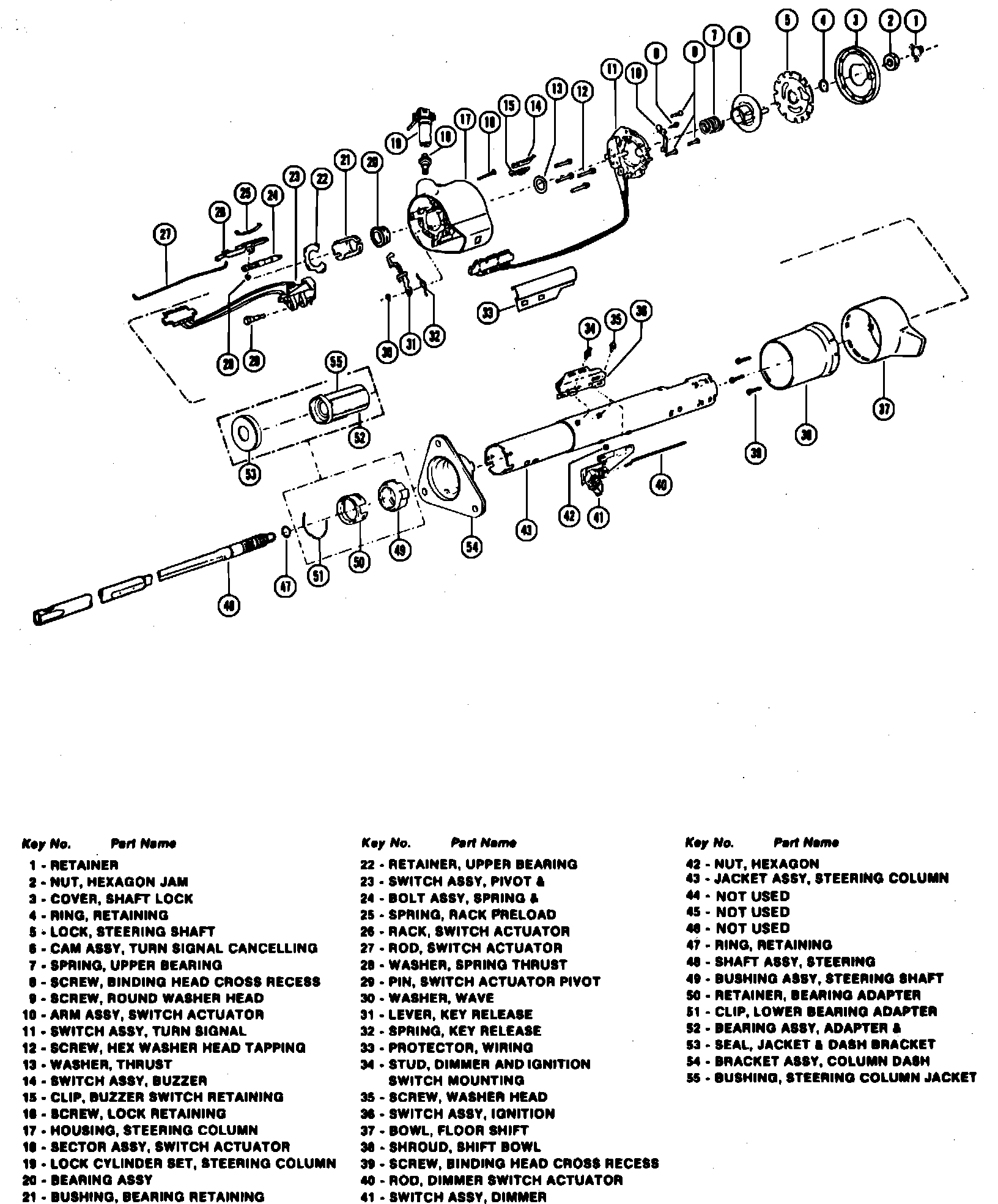

Fig. 26 Fixed key release steering column exploded view. Rear Wheel Drive Models:
