Seat Temperature Control Module
Seat Temperature Control Module

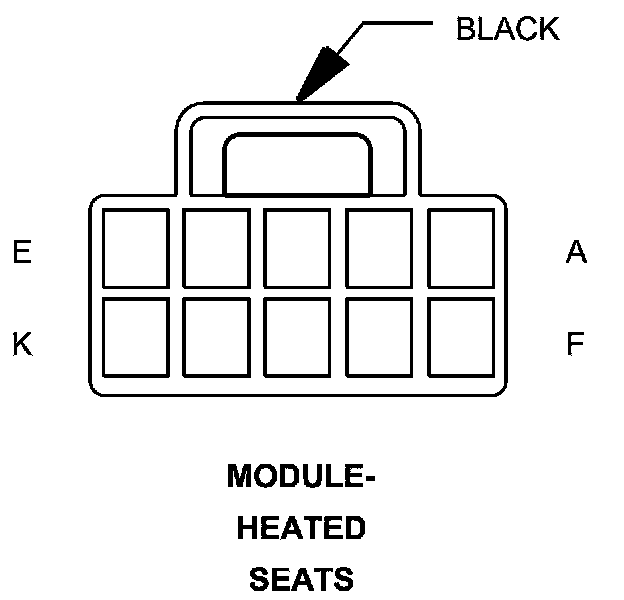

Connector - (DRIVER SEAT) 10 WAY

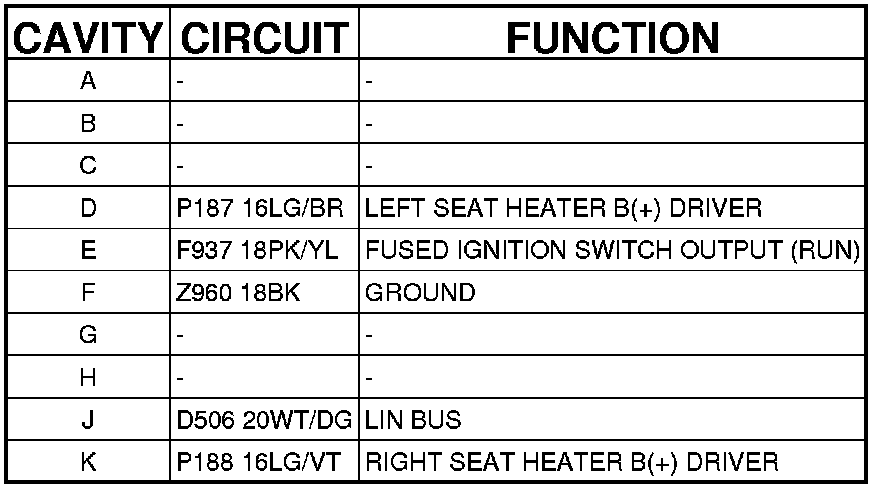

MODULE-HEATED SEATS - (DRIVER SEAT) 10 WAY
