Left

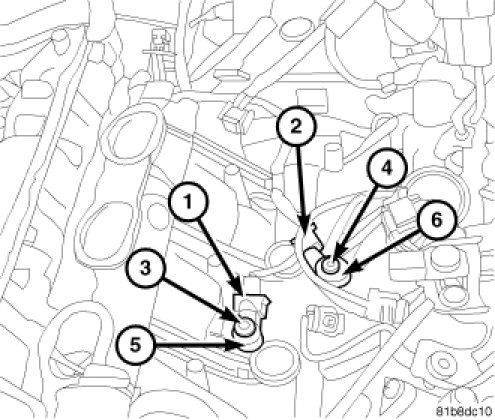

KNOCK SENSOR - 3.5L - LEFT





1. Install the Left Knock sensor (6).
2. Install the Left Knock Sensor bolt (4). Tighten to 20 Nm (15 ft. lbs.).




3. Reconnect the Left Knock Sensor harness connector (2).
4. Reconnect the negative battery cable.
5. Install the upper intake manifold, Intake Manifold - Removal
