Installation

INSTALLATION

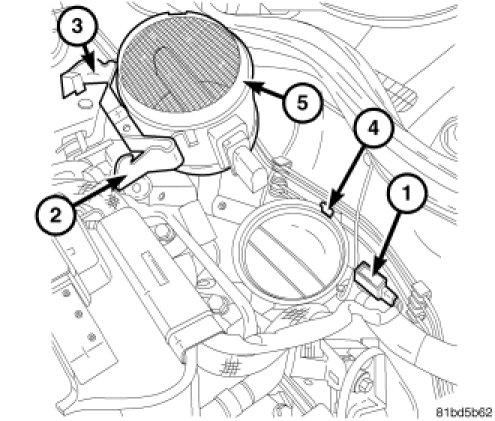

1. Install the MAF sensor.




2. Reconnect the retaining clip (4)
3. Engage the left notch (2).
4. Engage the right notch (3).
5. Reconnect the MAF sensor harness connector (1).
6. Install the engine cover.
7. Install the air filter housing.
8. Reconnect the negative battery cable.
