Installation

INSTALLATION

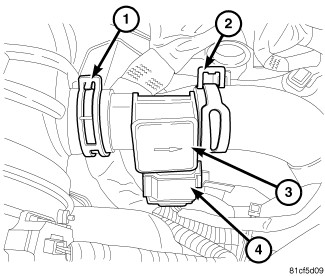

1. Note the arrow direction on the mass air flow (MAF) sensor and correctly install the sensor (3) to the hoses.

2. Engage the constant tension clamps (1 and 2) to secure the MAF sensor (3) to the hoses.

3. Connect the MAF sensor electrical connector (4).

4. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
