Installation

5.7L

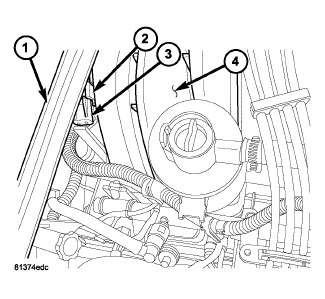

1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor o-ring seal for cuts or tears.
3. Position sensor (3) into intake manifold.
4. Rotate sensor 1/4 turn clockwise for installation.
5. Connect electrical connector (2) to sensor (3).
