Radio Frequency Module (RF Hub) - Installation

INSTALLATION

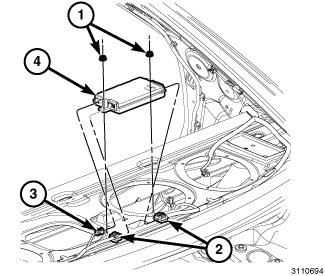

1. Position into place and install the RF Hub (4) and retainers (1).
2. Connect the electrical connectors (2).
3. If equipped, connect the remote start antenna (3).
4. Install the rear shelf cover Rear Shelf Panel - Installation.
5. Connect the negative battery cable.
