System Specifications

SPECIFICATIONS

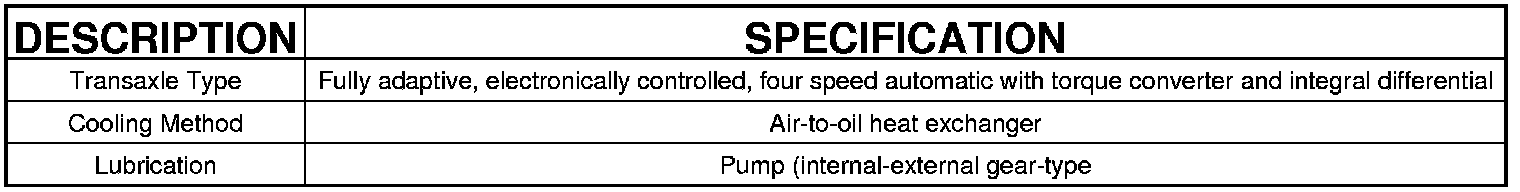

GENERAL SPECIFICATIONS

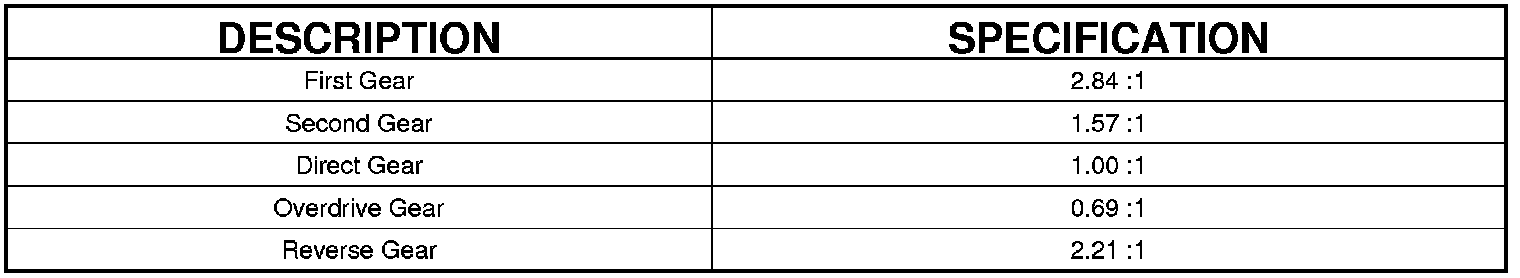

GEAR RATIOS

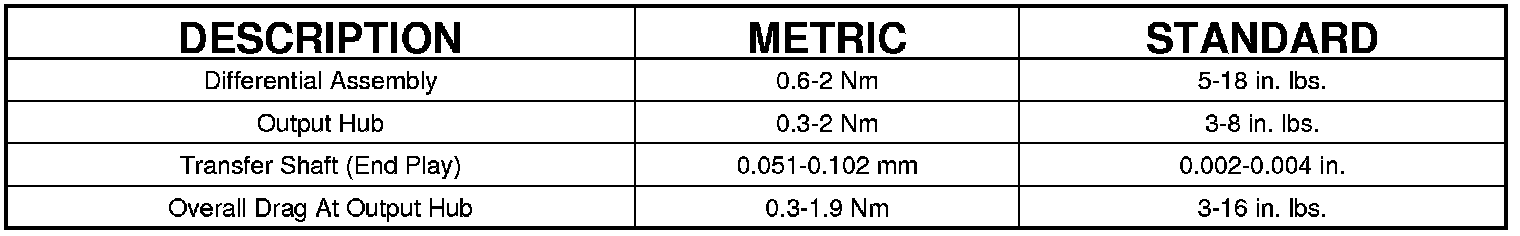

BEARING SETTINGS (END PLAY AND TURNING TORQUE)

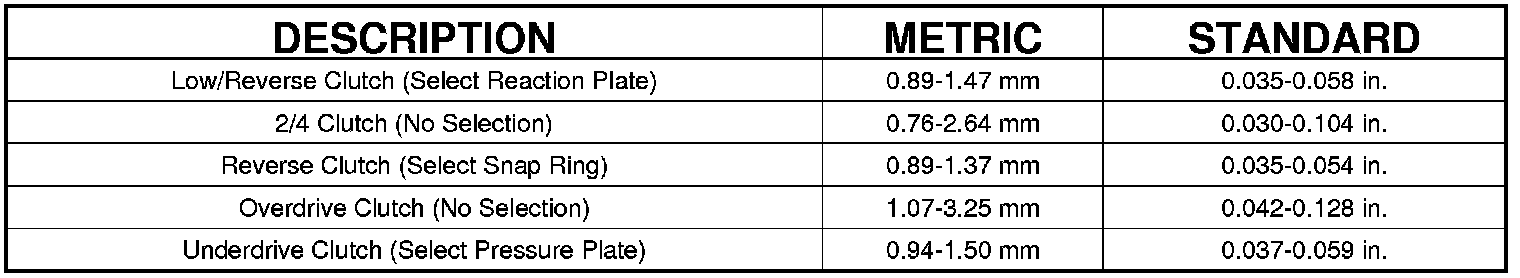

CLUTCH CLEARANCES

GEAR TRAIN MEASUREMENTS

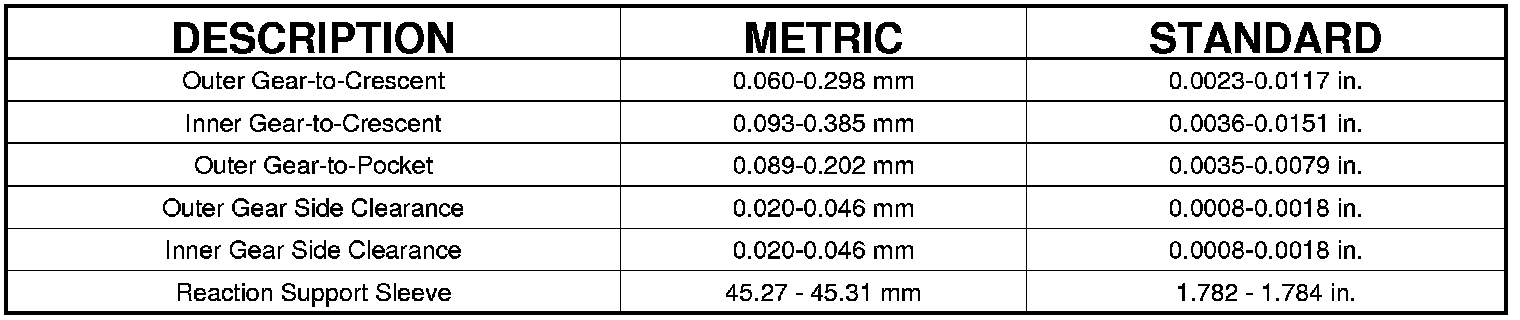

OIL PUMP CLEARANCES

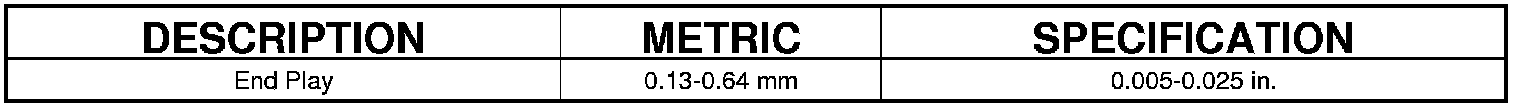

INPUT SHAFT

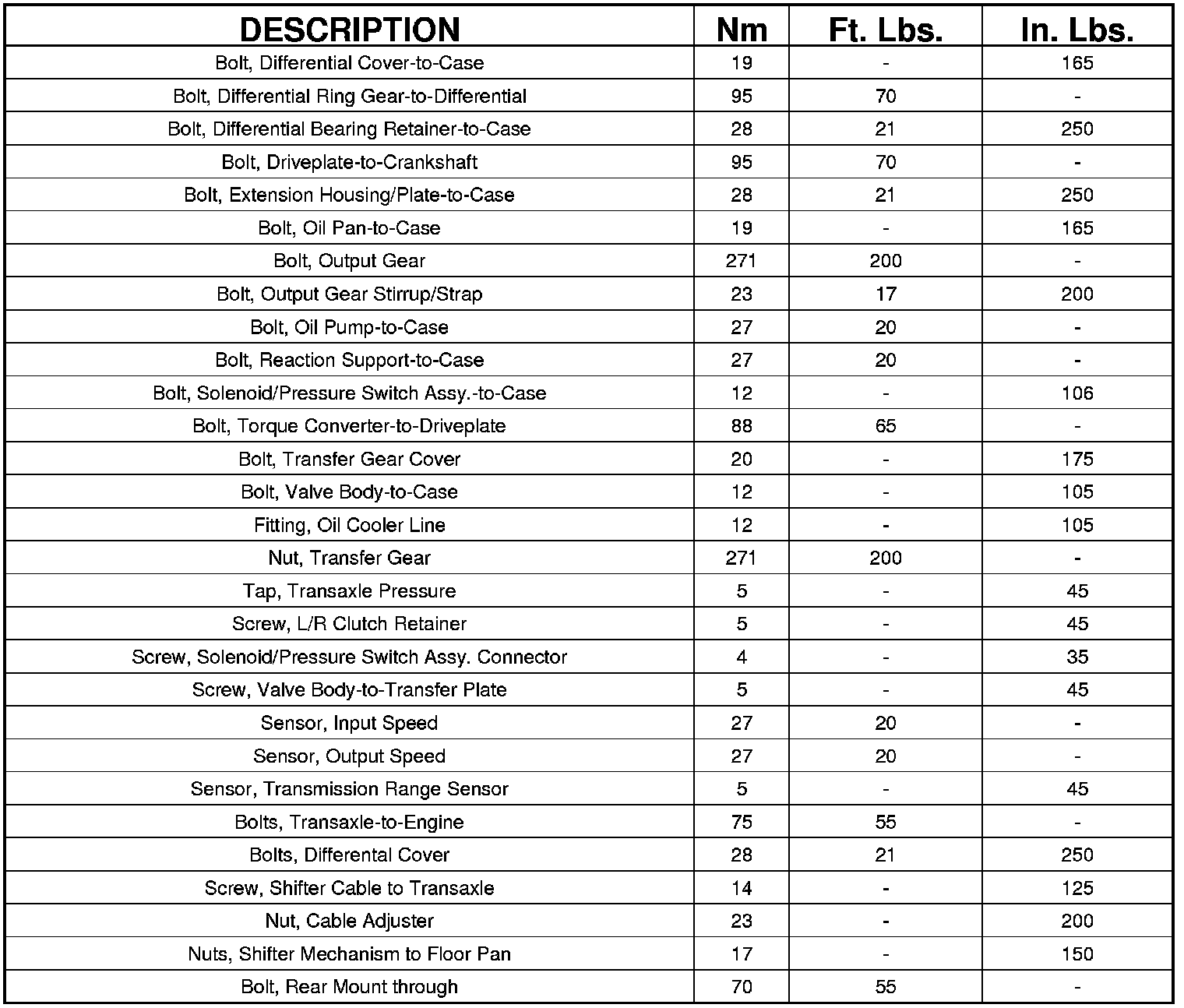

TORQUE SPECIFICATIONS
