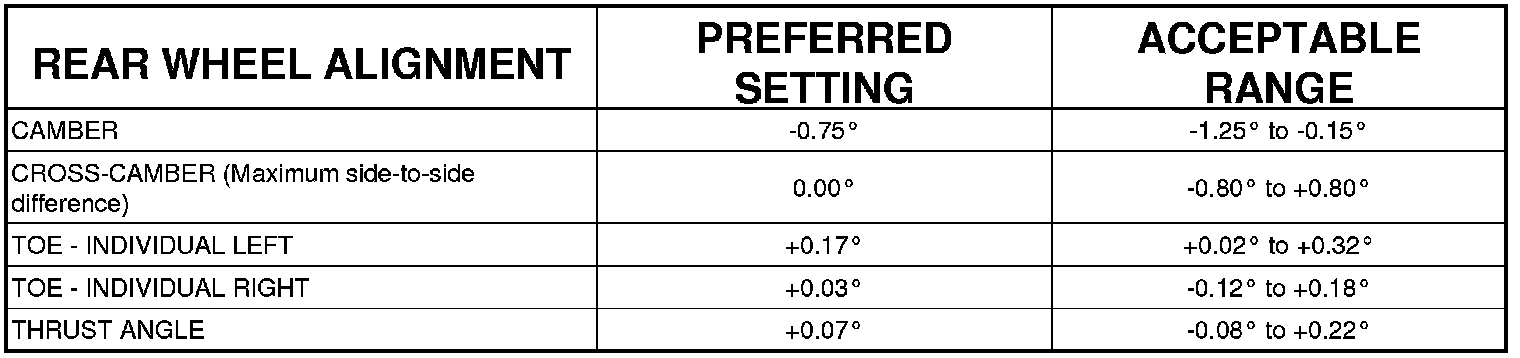

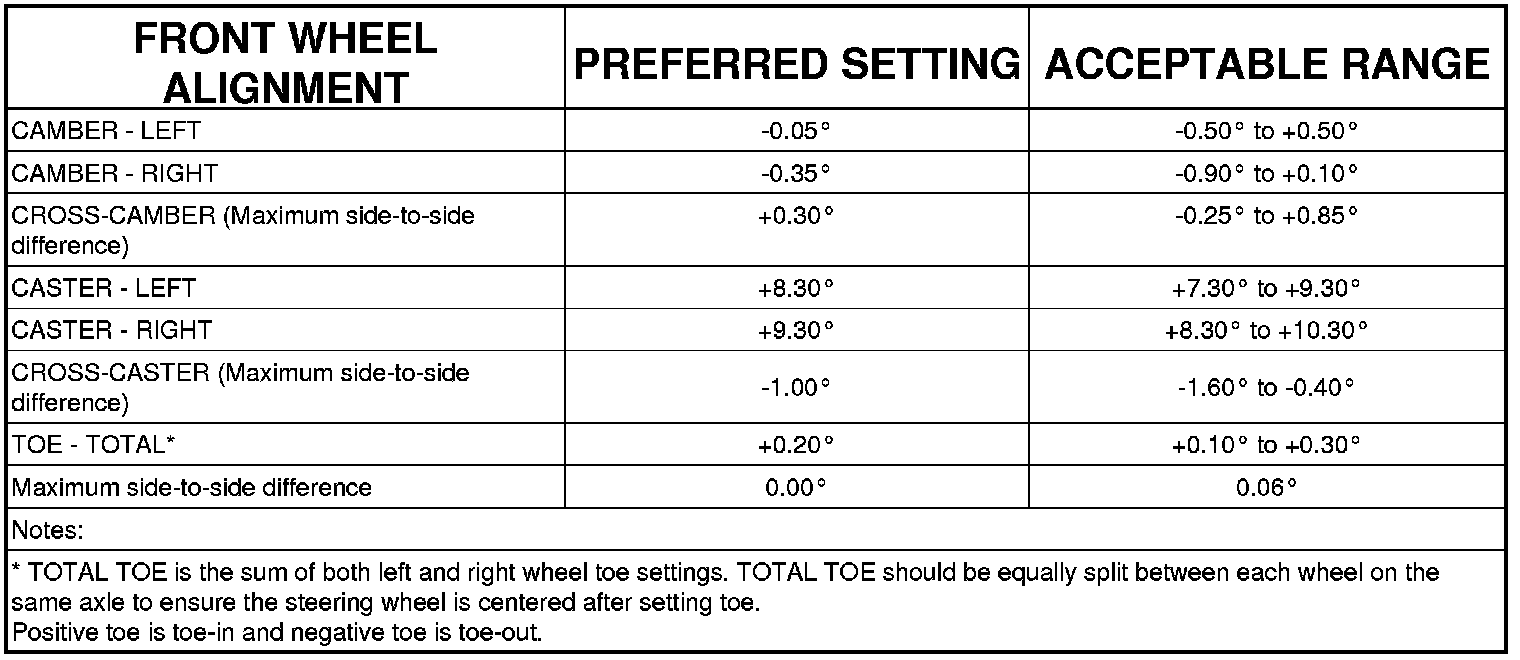

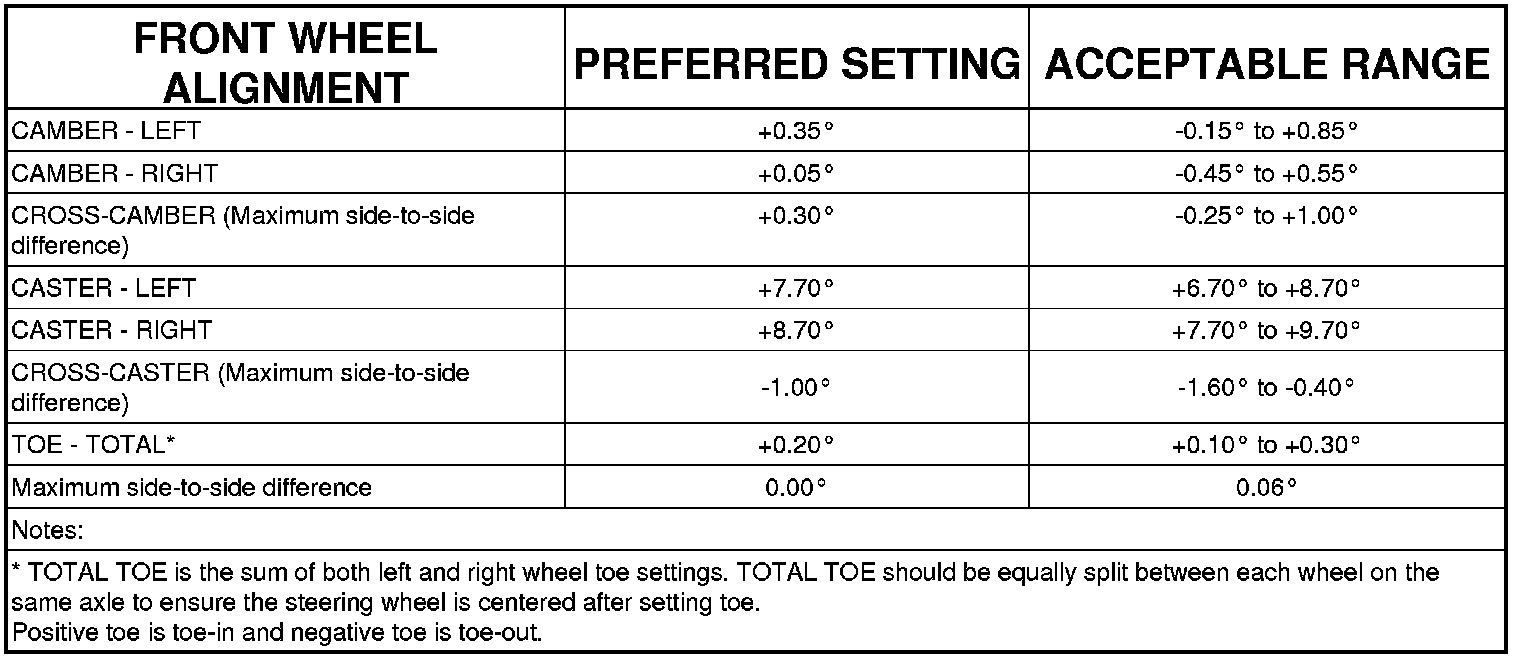

Wheel Alignment






WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Service and Repair

ALL-WHEEL-DRIVE









REAR-WHEEL-DRIVE









SRT8









POLICE PACKAGE
