Transmission Position Sensor/Switch: Diagrams

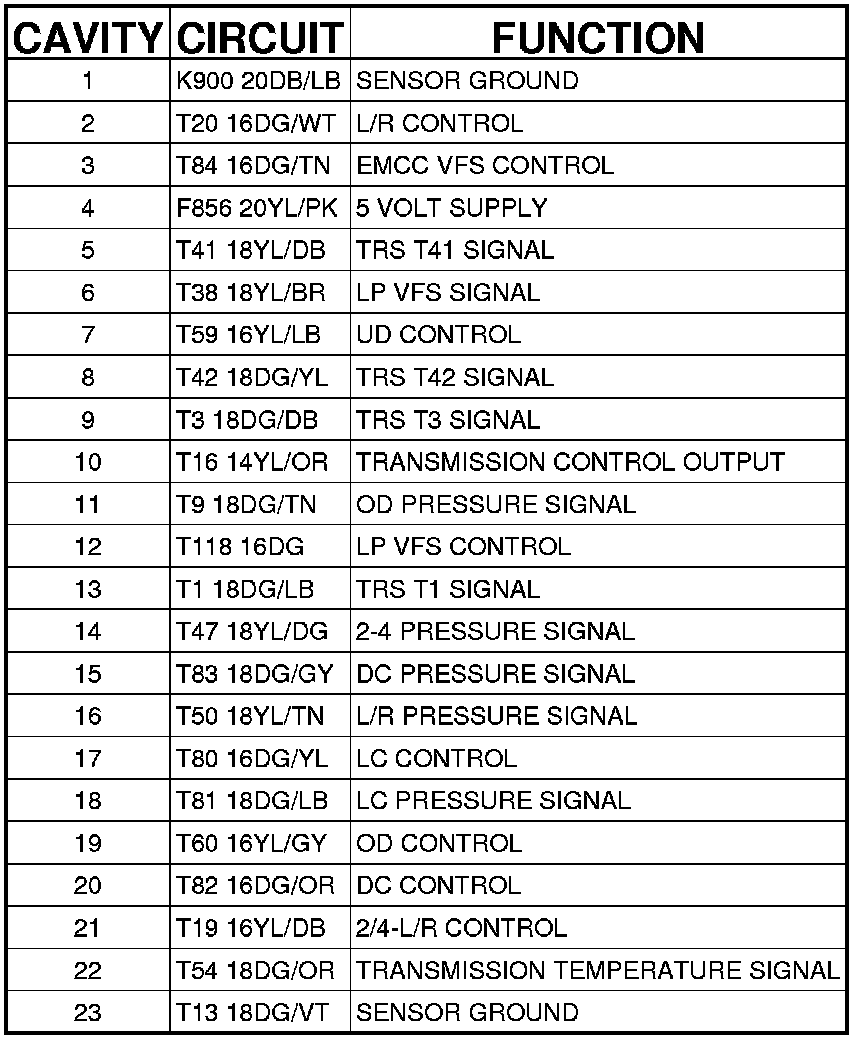

Connector (62TE) - (TRANSMISSION) 23 WAY

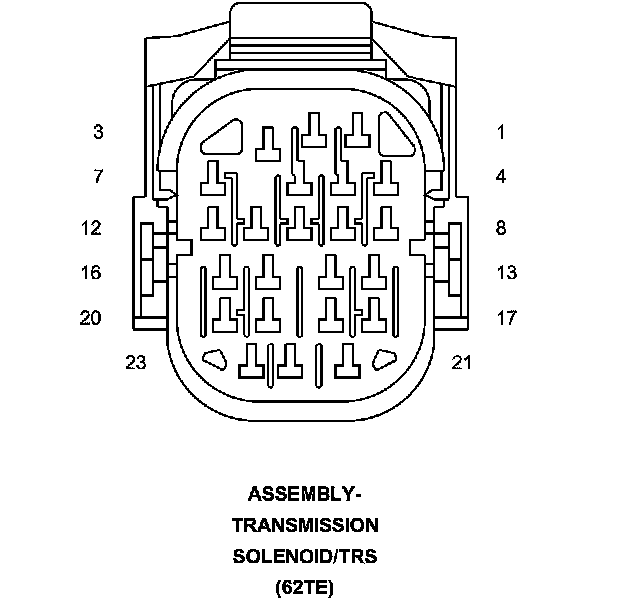

ASSEMBLY-TRANSMISSION SOLENOID/TRS (62TE) - (TRANSMISSION) 23 WAY
