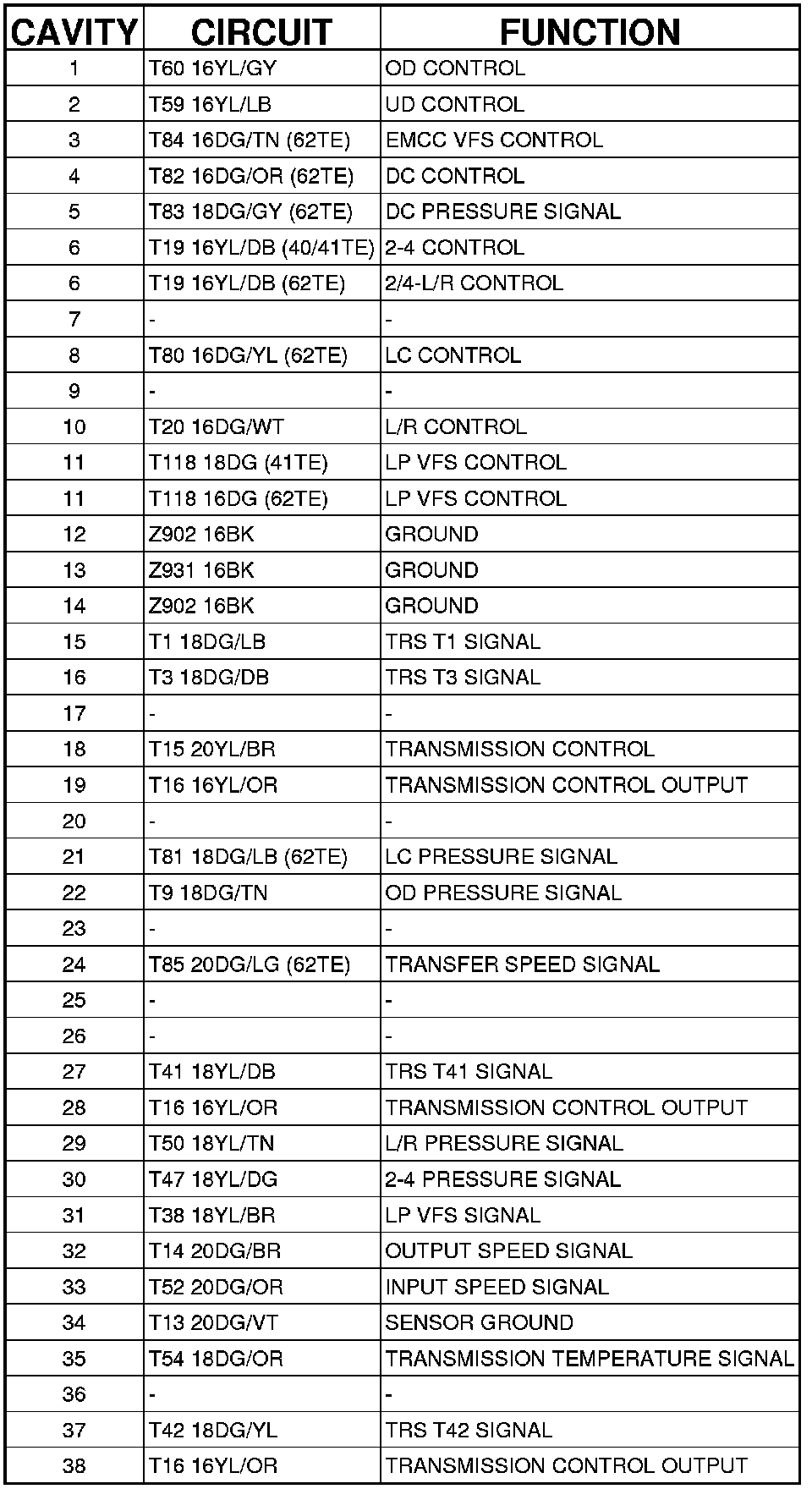

Powertrain Control Module C4 (Transmission) 38 Way
Powertrain Control Module C4 (Transmission) 38 Way

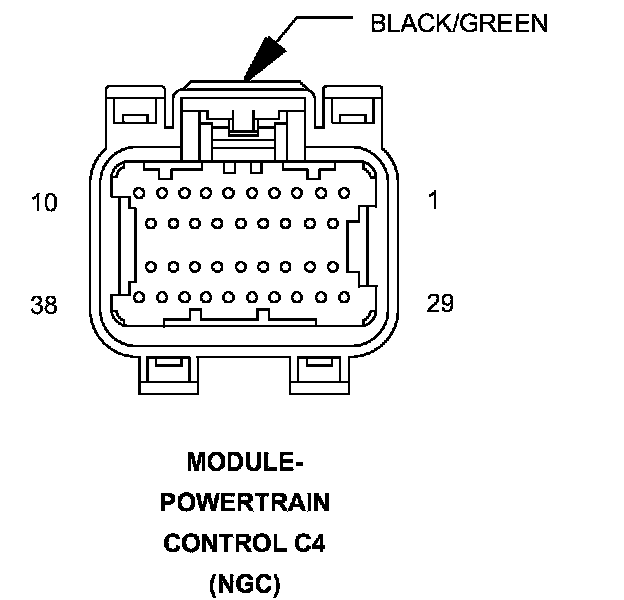

Connector C4 (NGC) - (TRANSMISSION) 38 WAY
MODULE-POWERTRAIN CONTROL (NGC) - (TRANSMISSION) 38 WAY
