Coolant Temperature Sensor/Switch (For Computer): Diagrams

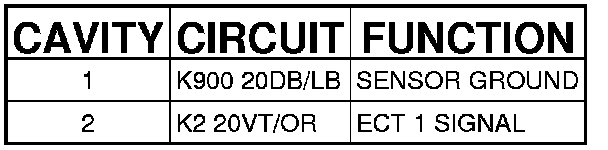

Connector (2.0L/2.4L/2.7L) - (ENGINE) 2 WAY

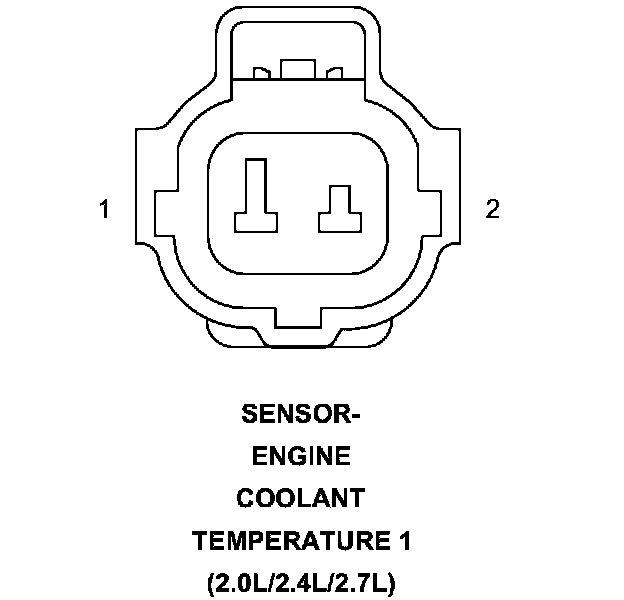

SENSOR-ENGINE COOLANT TEMPERATURE 1 (2.0L/2.4L/2.7L) - (ENGINE) 2 WAY
