Variable Induction Control Valve

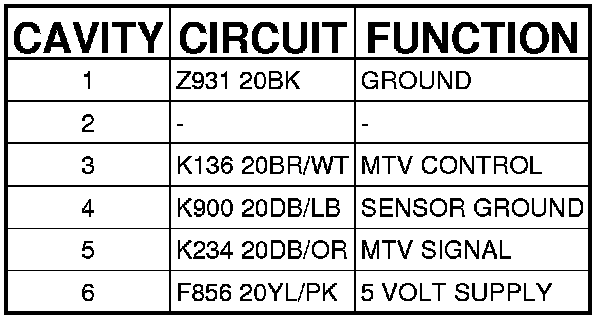

Connector (3.5L shown 2.7L similar) - (ENGINE) 6 WAY

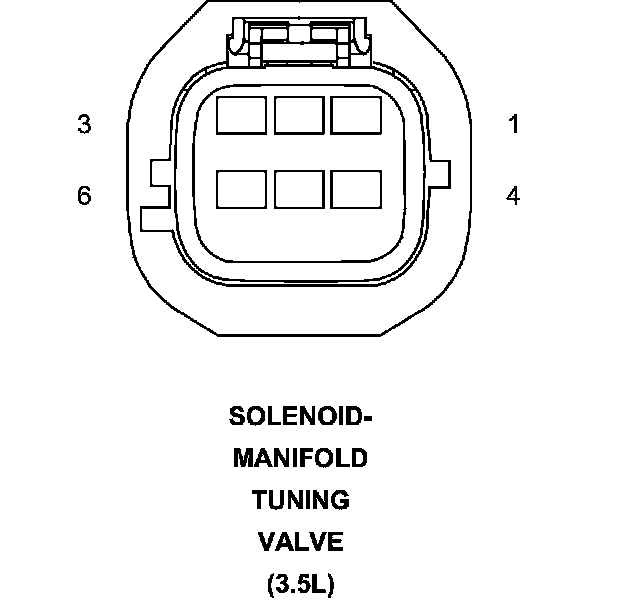

SOLENOID-MANIFOLD TUNING VALVE (3.5L shown 2.7L similar) - (ENGINE) 6 WAY
