Powertrain Control Module C1 (Headlamp And Dash) 58 Way

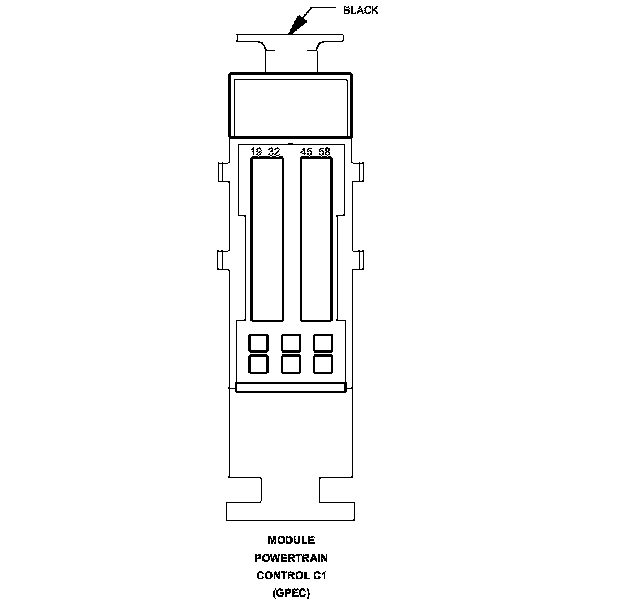

Connector C1 (GPEC) - (HEADLAMP AND DASH) 58 WAY

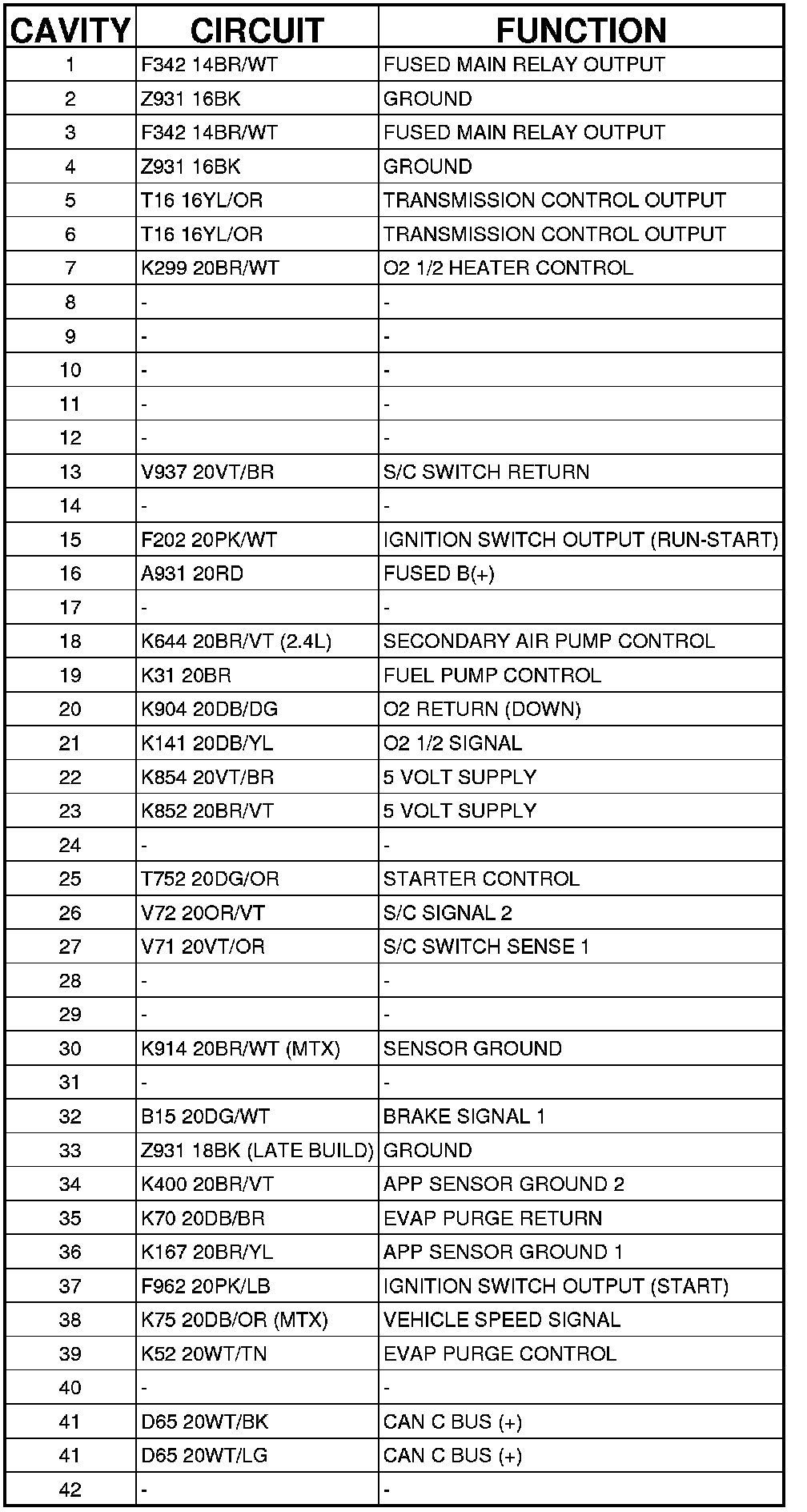

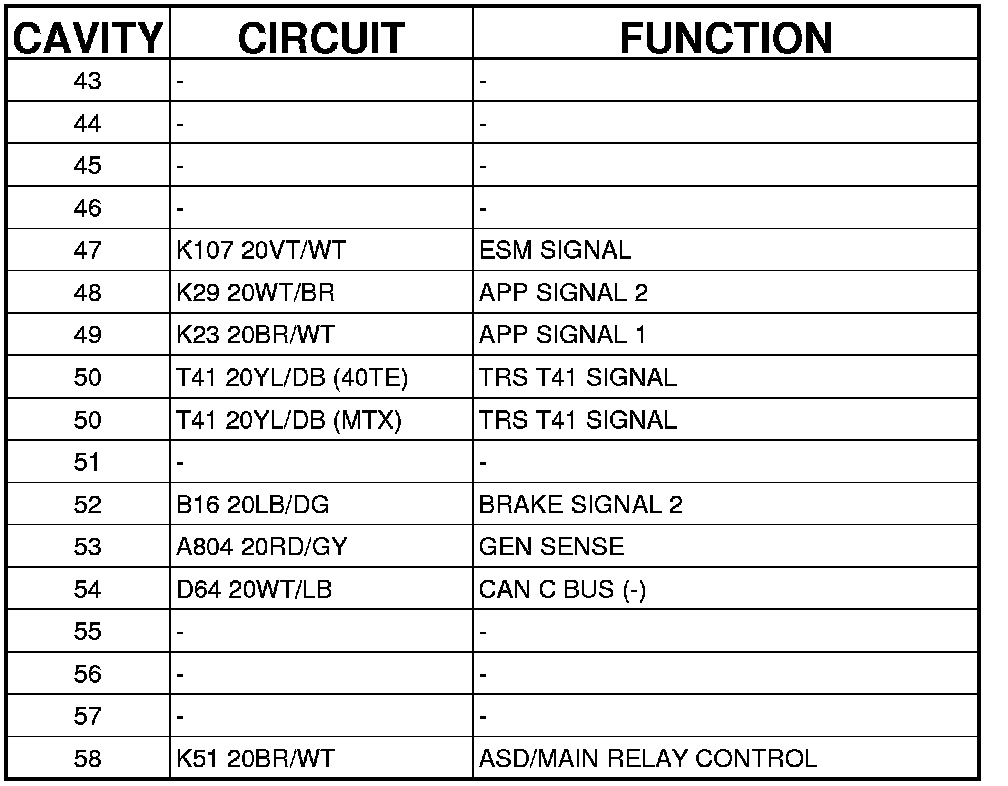

MODULE-POWERTRAIN CONTROL (GPEC) - (HEADLAMP AND DASH) 58 WAY
