Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

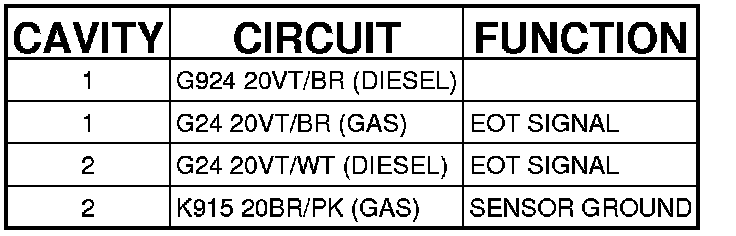

Connector (2.0L/2.4L) - (ENGINE) 2 WAY

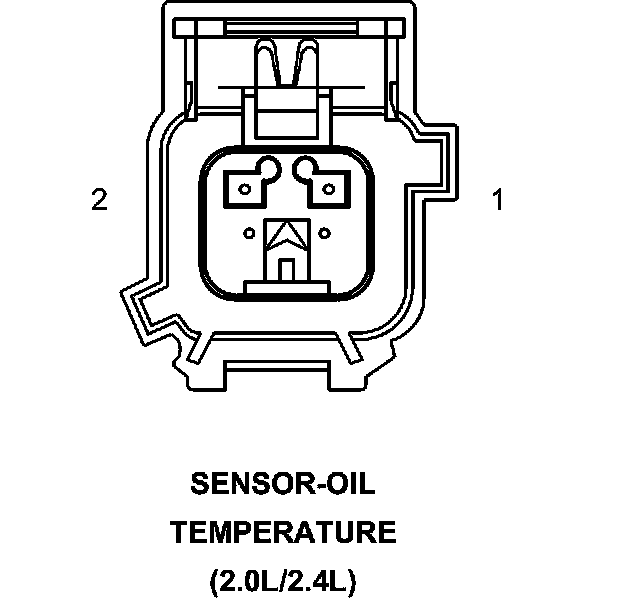

SENSOR-OIL TEMPERATURE (2.0L/2.4L) - (ENGINE) 2 WAY
