Electronic Brake Control Module

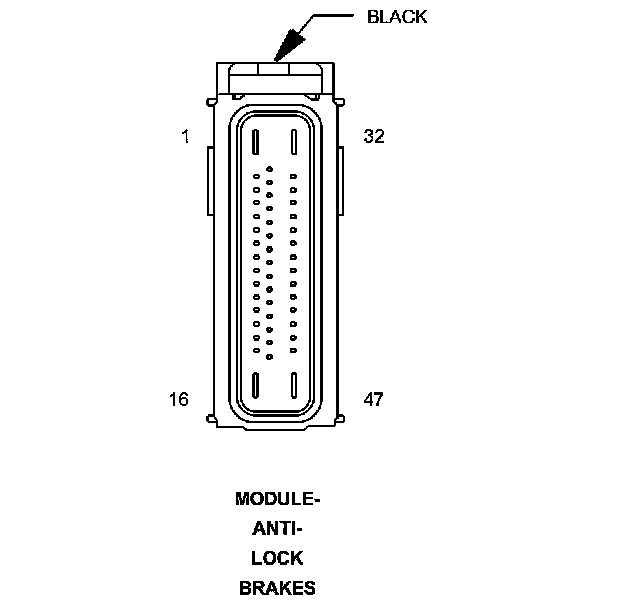

Connector - (HEADLAMP AND DASH) 47 WAY

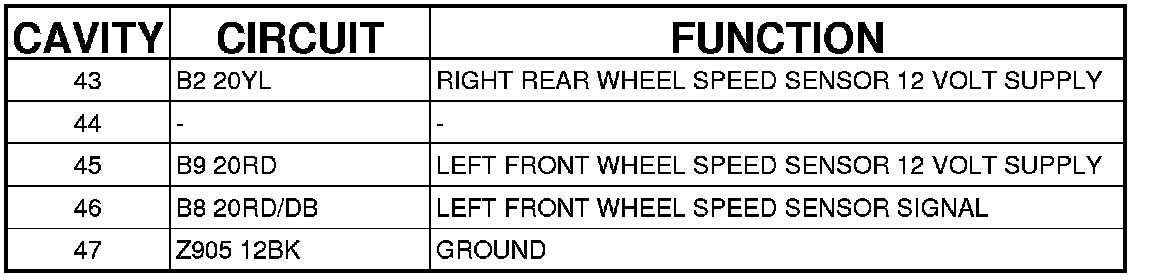

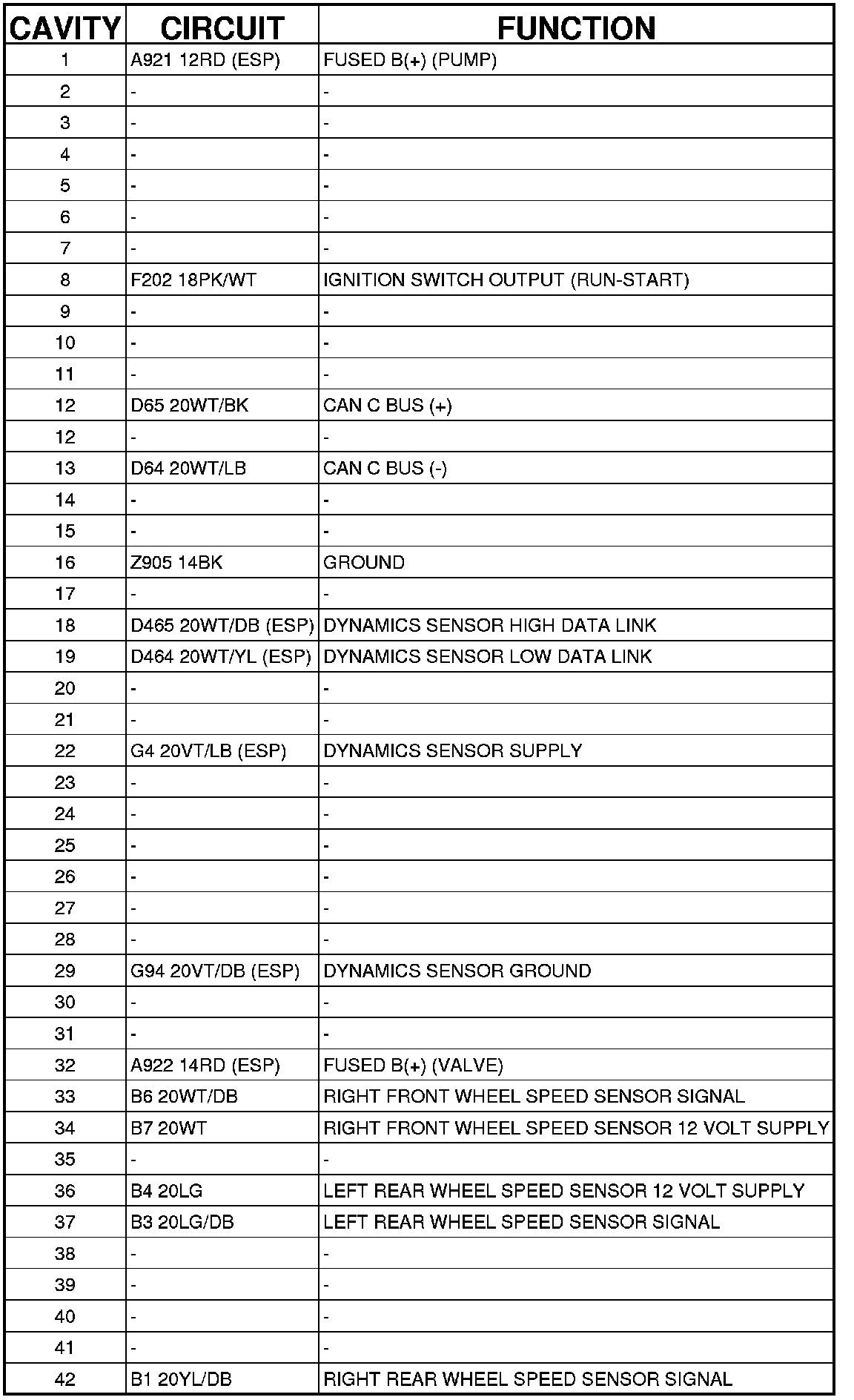

MODULE-ANTI-LOCK BRAKES - (HEADLAMP AND DASH) 47 WAY
