Chrysler
>>
2009
>>
Sebring Convertible L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Control Module
>>
Power Top Module C2 (JS27) (Body) 14 Way
Power Top Module C2 (JS27) (Body) 14 Way

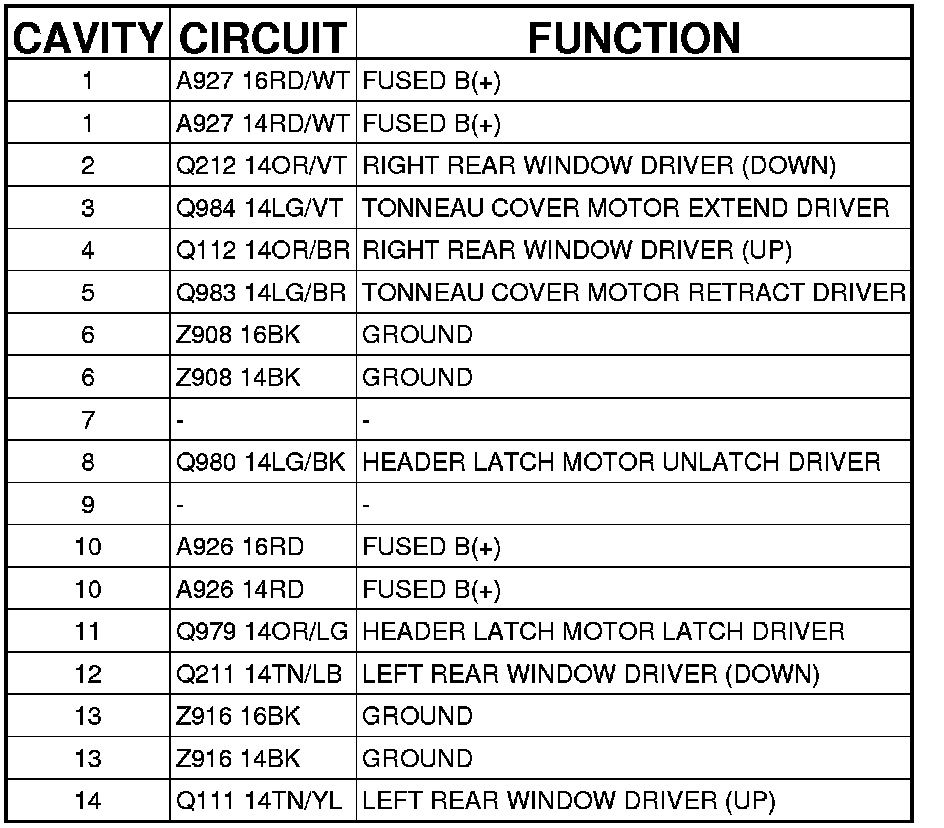

Connector C2 (JS27) - (BODY) 14 WAY

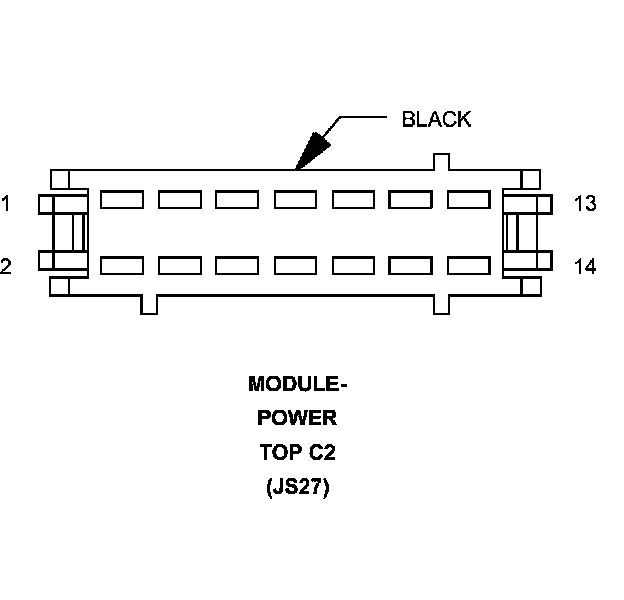

MODULE-POWER TOP (JS27) - (BODY) 14 WAY
