Control Module HVAC
Control Module HVAC
Connector (ATC) - (INSTRUMENT PANEL) 4 WAY

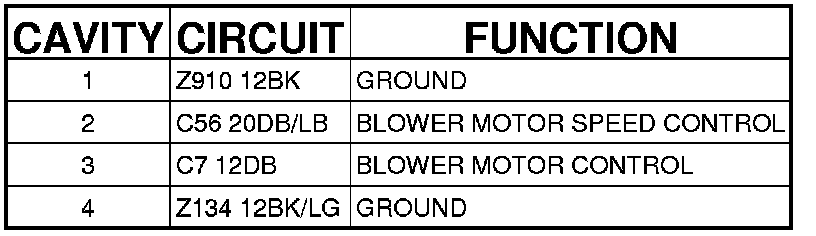

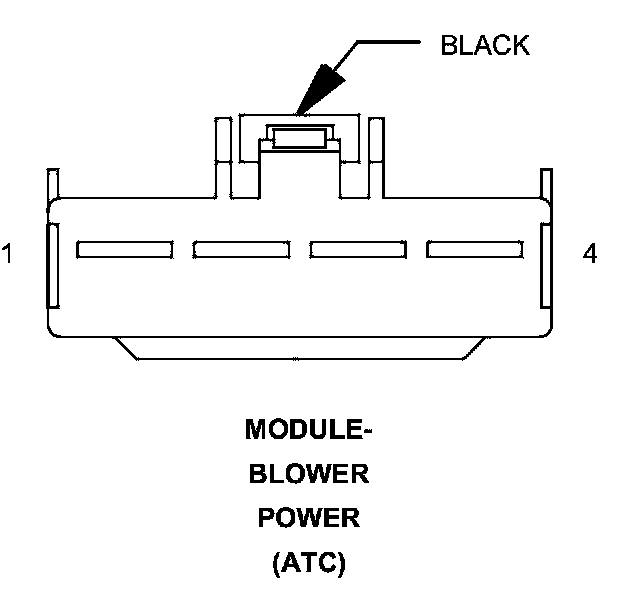

MODULE-BLOWER POWER (ATC) - (INSTRUMENT PANEL) 4 WAY
