Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

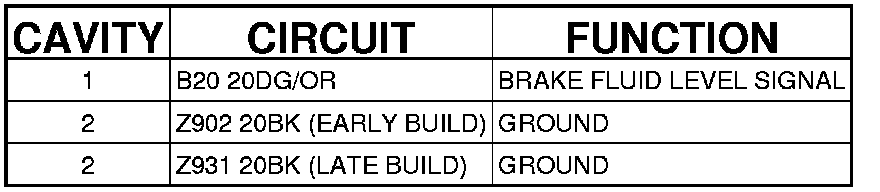

Connector - (HEADLAMP AND DASH) 2 WAY

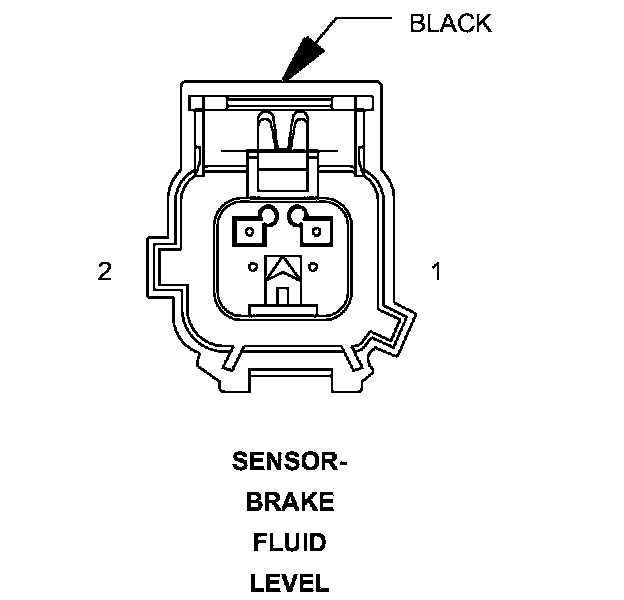

SENSOR-BRAKE FLUID LEVEL - (HEADLAMP AND DASH) 2 WAY
