Vehicle Speed Sensor: Diagrams

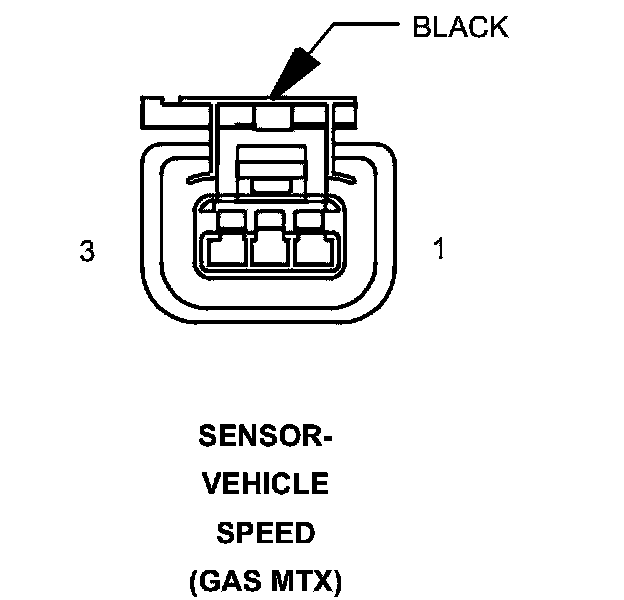

Connector (GAS MTX) - (ENGINE) 3 WAY

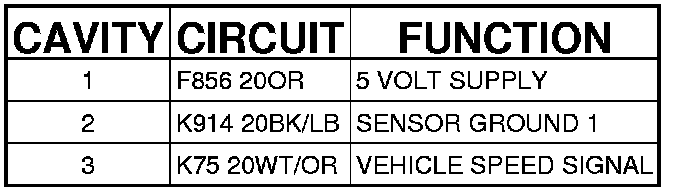

SENSOR-VEHICLE SPEED (GAS MTX) - (ENGINE) 3 WAY
