Transmission Position Sensor/Switch: Diagrams

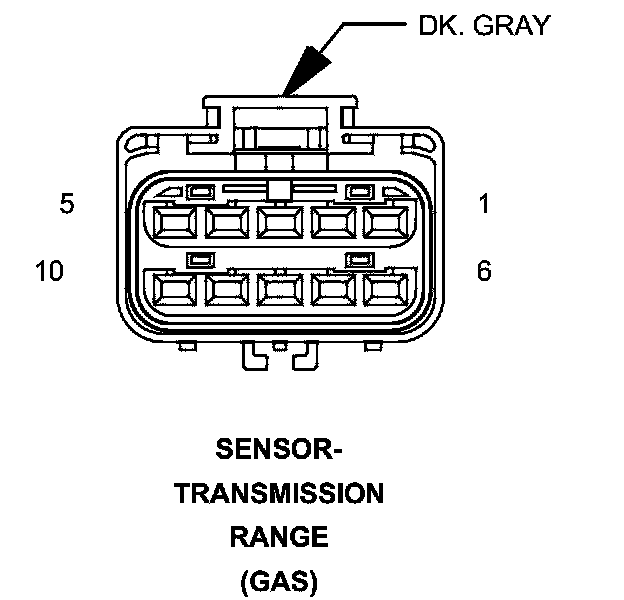

Connector (GAS) - (ENGINE) 10 WAY

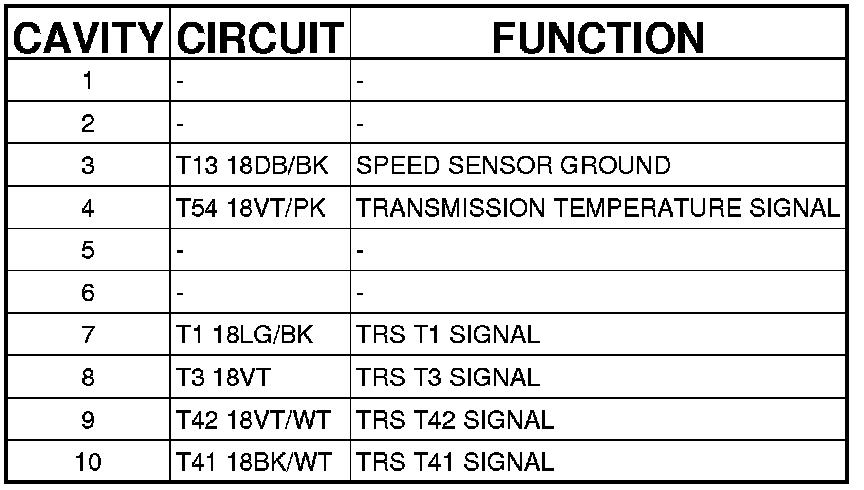

SENSOR-TRANSMISSION RANGE (GAS) - (ENGINE) 10 WAY
