Voice Activation Module
Voice Activation Module

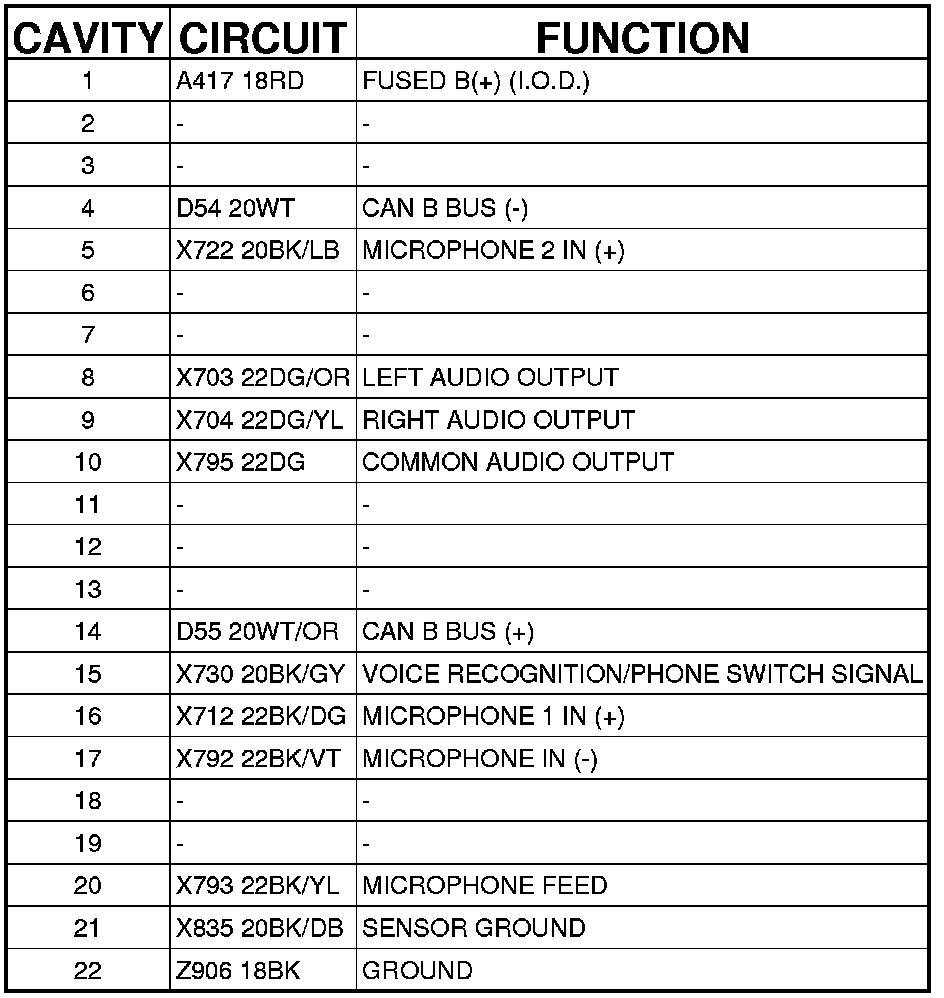

Connector - (INSTRUMENT PANEL) 22 WAY

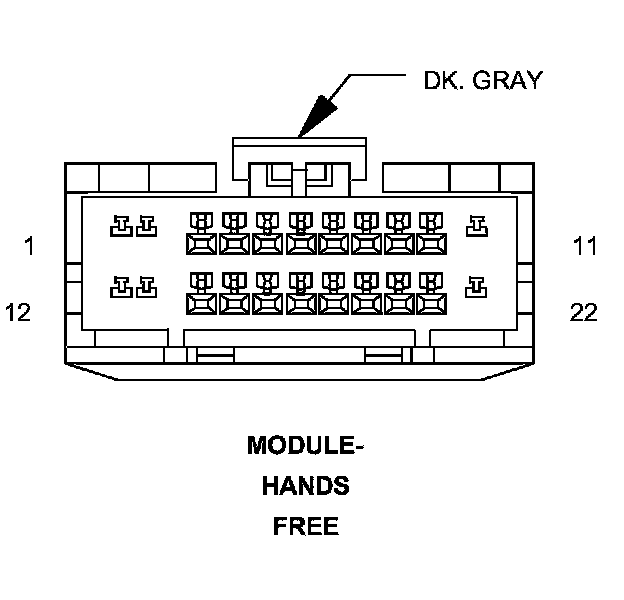

MODULE-HANDS FREE - (INSTRUMENT PANEL) 22 WAY
