Home >> Chrysler >> 2009 >> PT Cruiser L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Module >> Totally Integrated Power Module (TIPM To Battery Positive) 1 Way

Totally Integrated Power Module (TIPM To Battery Positive) 1 Way

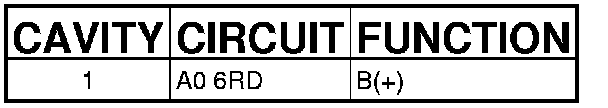

Connector (GAS) - (TIPM TO BATTERY POSITIVE) 1 WAY

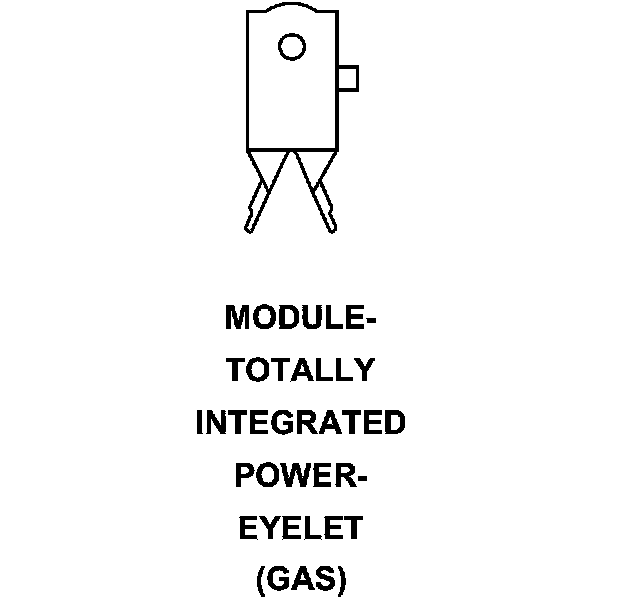

MODULE-TOTALLY INTEGRATED POWER (GAS) - (TIPM TO BATTERY POSITIVE) 1 WAY
