Speed Control Switch - Installation

INSTALLATION





The speed control switch is mounted in the steering wheel and wired through the clock spring device under the airbag module.





WARNING: If removal of airbag module is necessary, refer to the restraint systems.

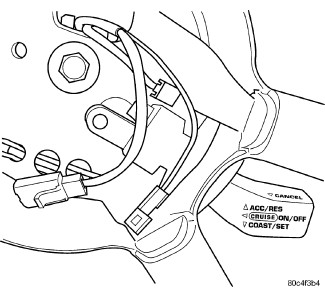

1. Connect the electrical connector.

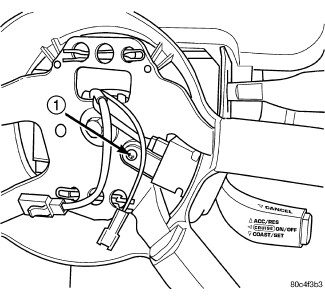

2. Install switch and tighten the screws (1) to 1.6 Nm (15 in. lbs.). Make sure rubber seal is in place around switch.
3. Install airbag, refer to the Restraint Systems.
4. Install the negative battery cable.
5. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
