Humidity Sensor - Installation

INSTALLATION

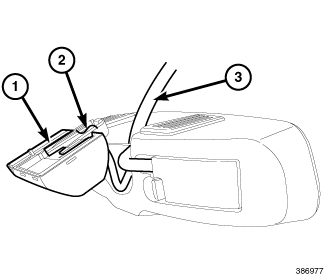

1. Connect the mirror wire harness (3) to the humidity sensor (1).
2. Position the humidity sensor onto the rear view mirror base (2) and engage the retaining tabs. Make sure the retaining tabs are fully engaged.
3. Install the interior rear view mirror Interior Rearview Mirror - Installation.
4. Reconnect the negative battery cable.
