lemon-mirror
:
Home
>>
Chrysler
>>
2009
>>
Aspen 2WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

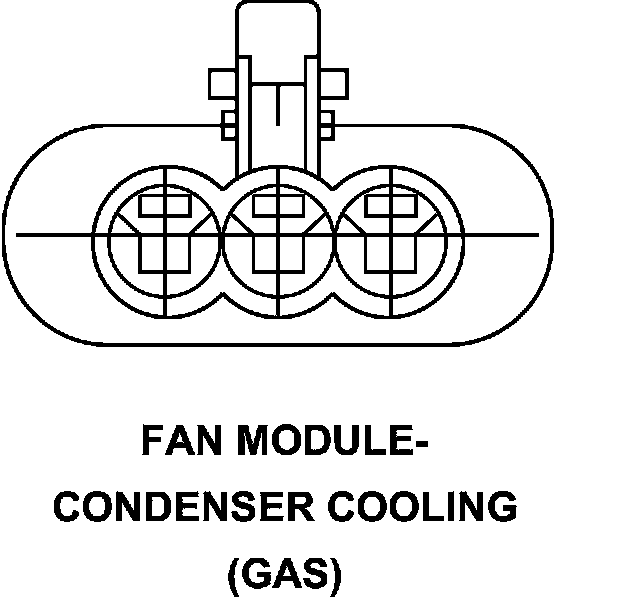

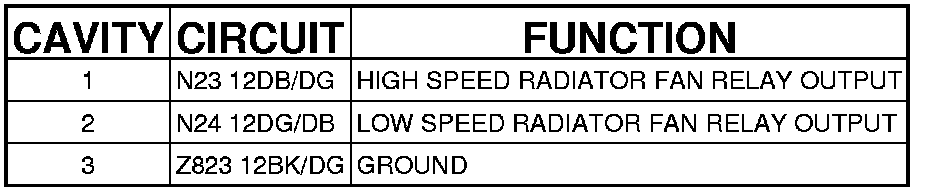

Connector (GAS) - (HEADLAMP AND DASH) 3 WAY
FAN MODULE-CONDENSER COOLING (GAS) - (HEADLAMP AND DASH) 3 WAY
