Entertainment System Control Module
>>
Satellite Video Module C4 (Body) 2 Way
Satellite Video Module C4 (Body) 2 Way

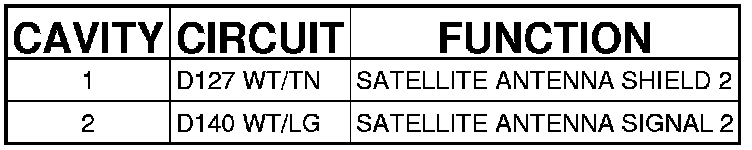

Connector C4 - (BODY) 2 WAY

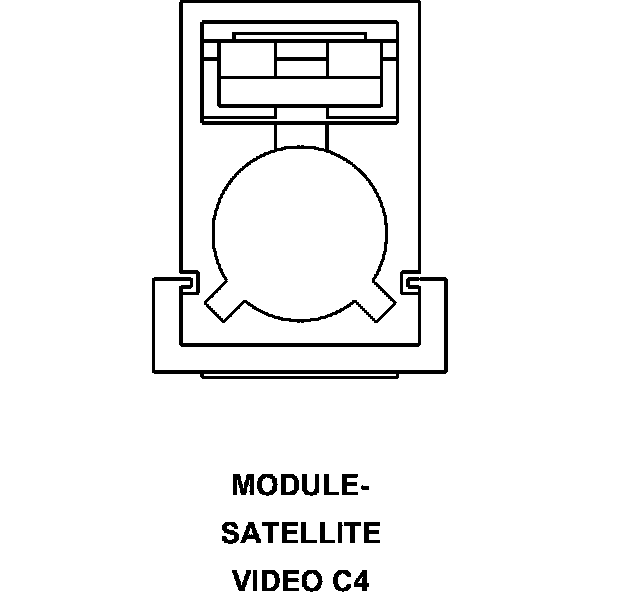

MODULE-SATELLITE VIDEO - (BODY) 2 WAY
