Chrysler
>>
2009
>>
Aspen 2WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
>>
Satellite Video Module C2 (Body Left) 2 Way
Satellite Video Module C2 (Body Left) 2 Way

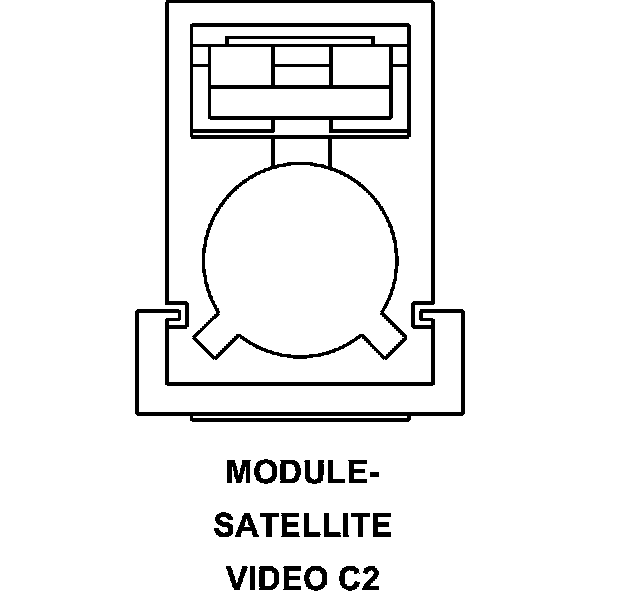

Connector C2 - (BODY LEFT) 2 WAY

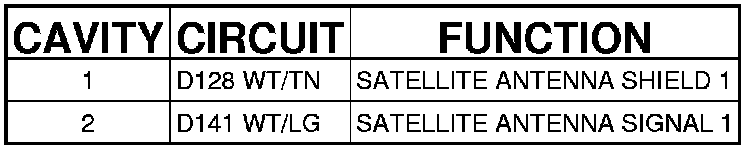

MODULE-SATELLITE VIDEO - (BODY LEFT) 2 WAY
