Condenser: Diagrams

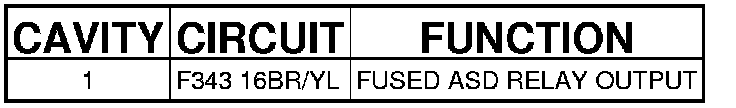

Connector (2.7L/5.7L) - (ENGINE) 1 WAY

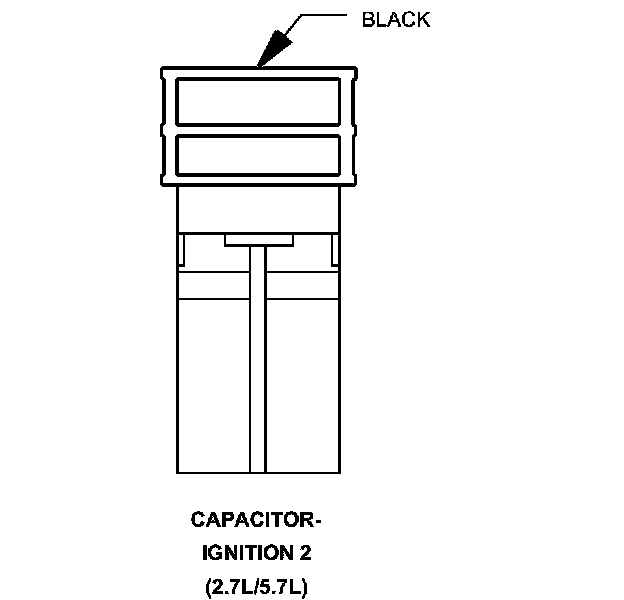

CAPACITOR-IGNITION 2 (2.7L/5.7L) - (ENGINE) 1 WAY
