Coolant Temperature Sensor/Switch (For Computer): Diagrams

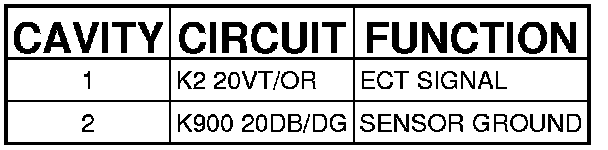

Connector (GAS EXCEPT 2.7L) - (ENGINE) 2 WAY

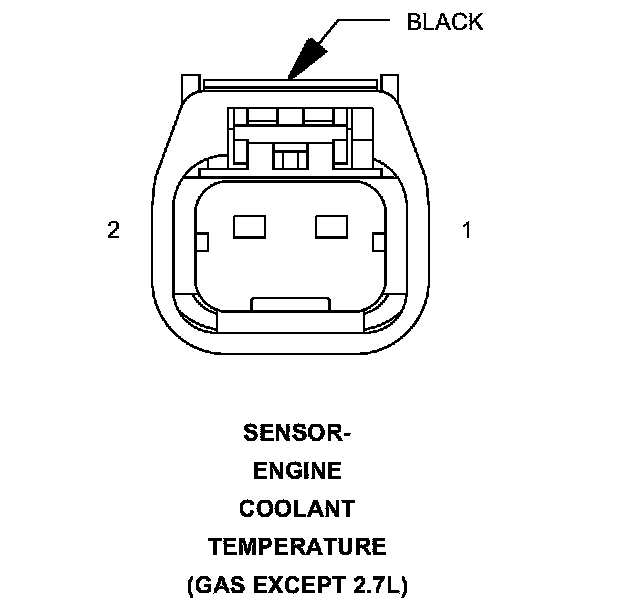

SENSOR-ENGINE COOLANT TEMPERATURE (GAS EXCEPT 2.7L) - (ENGINE) 2 WAY
