Home >> Chrysler >> 2009 >> 300 V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

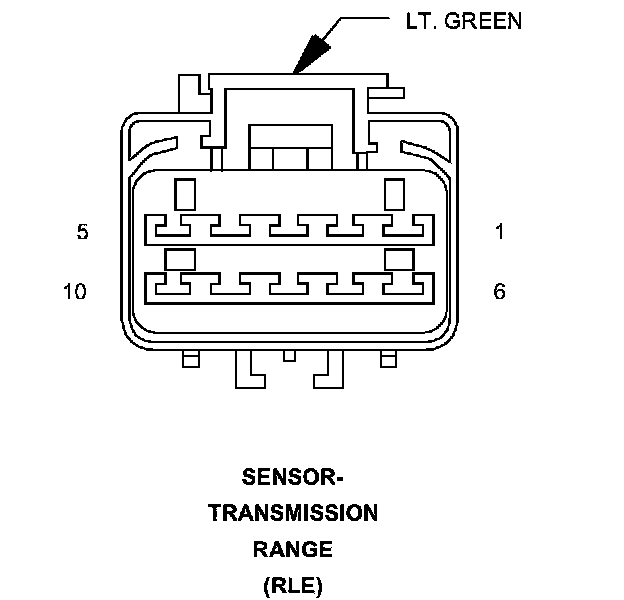

Connector (RLE) - (ENGINE) 10 WAY

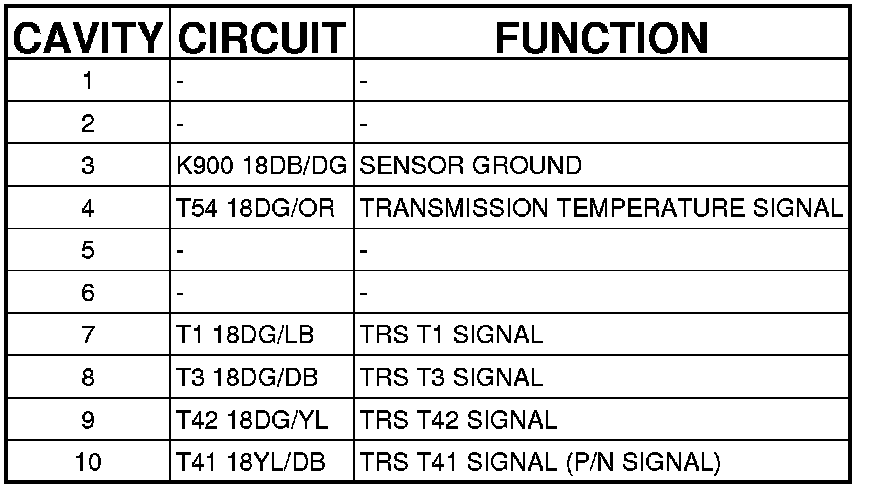

SENSOR-TRANSMISSION RANGE (RLE) - (ENGINE) 10 WAY
