Main Relay (Computer/Fuel System): Diagrams

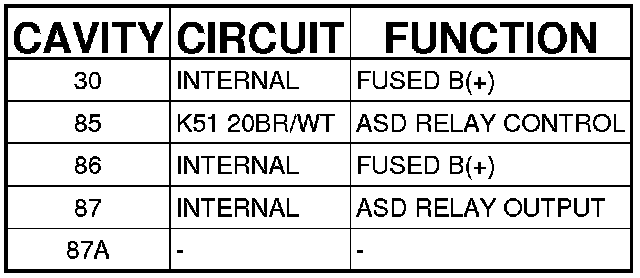

Connector - (IN TIPM) 5 WAY

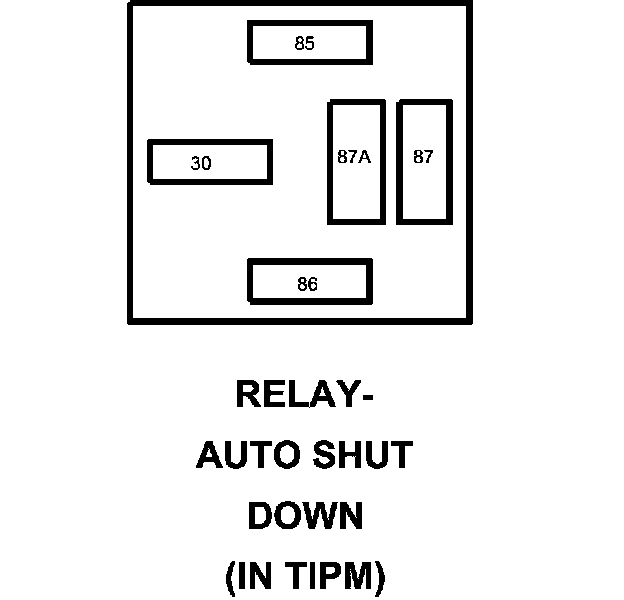

RELAY-AUTO SHUT DOWN - (IN TIPM) 5 WAY
