Powertrain Control Module C3 (Headlamp And Dash) 38 Way

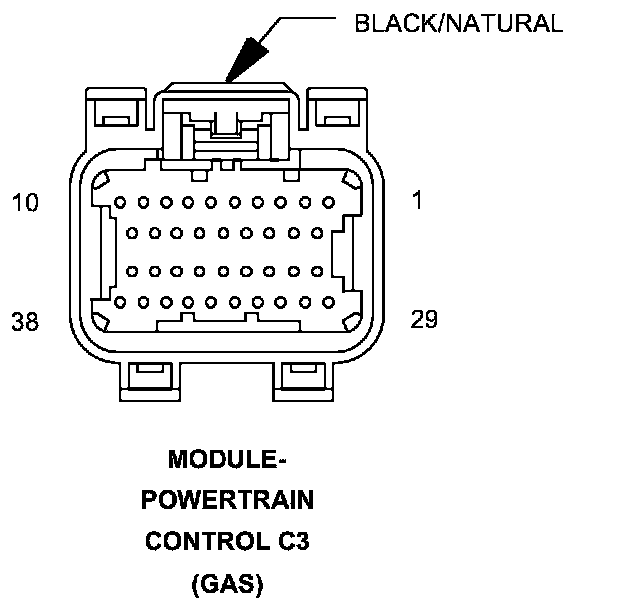

Connector C3 (GAS) - (HEADLAMP AND DASH) 38 WAY

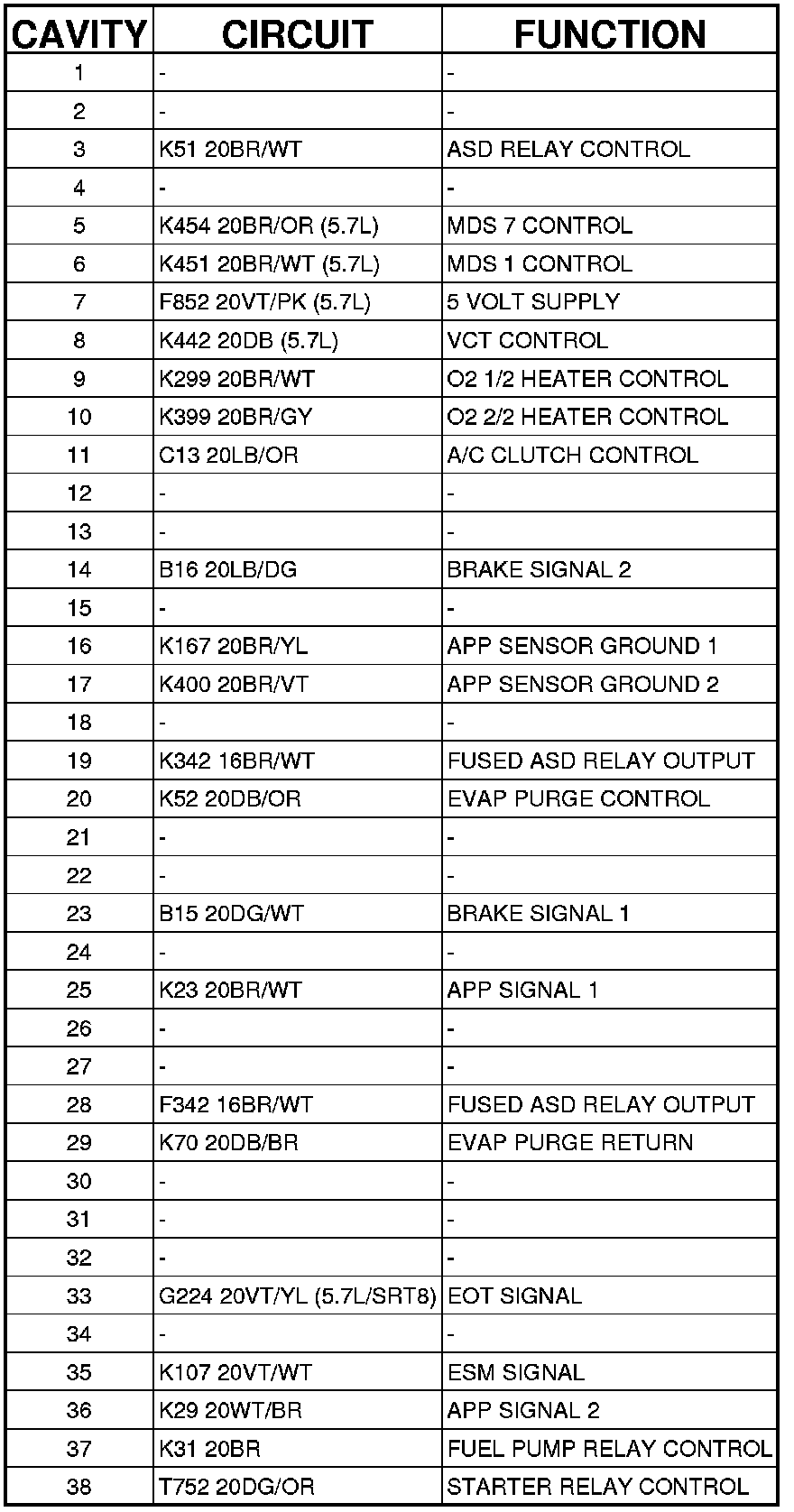

MODULE-POWERTRAIN CONTROL (GAS) - (HEADLAMP AND DASH) 38 WAY
