Powertrain Control Module C1 (Headlamp And Dash) 38 Way

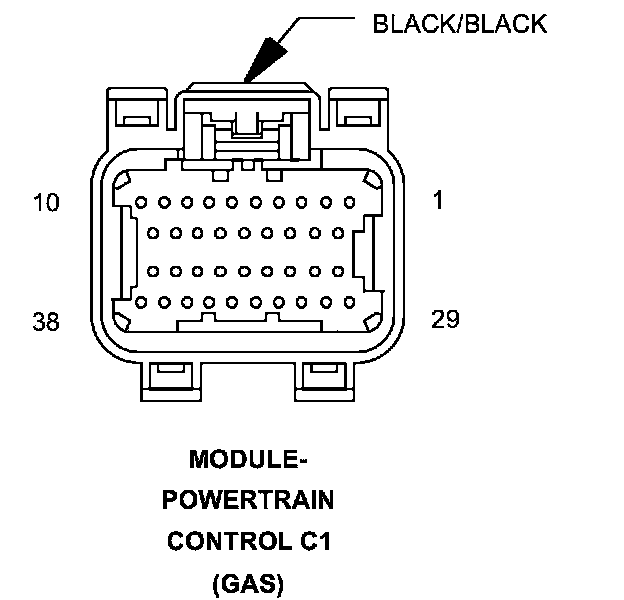

Connector C1 (GAS) - (HEADLAMP AND DASH) 38 WAY

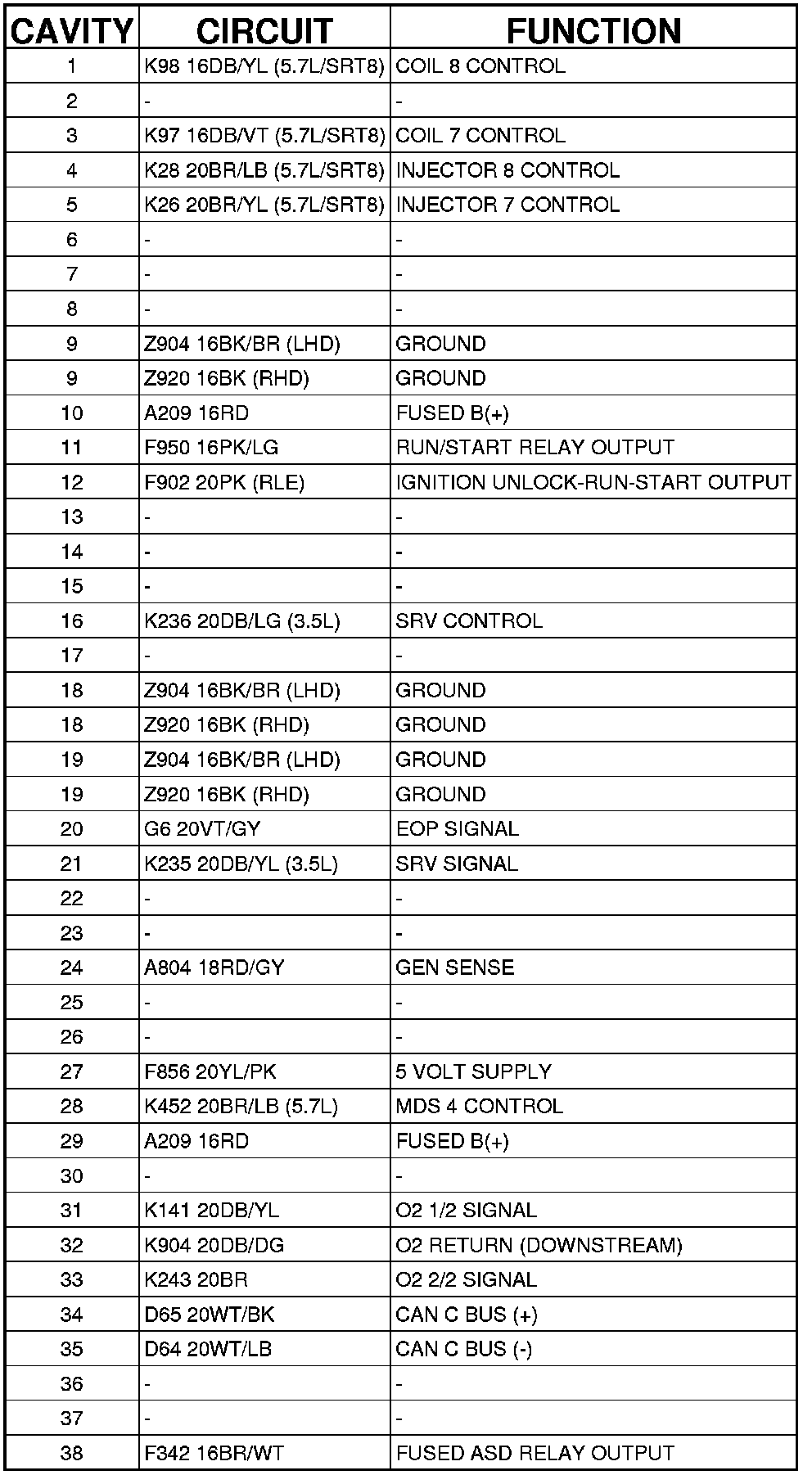

MODULE-POWERTRAIN CONTROL (GAS) - (HEADLAMP AND DASH) 38 WAY
