Tire Pressure Module

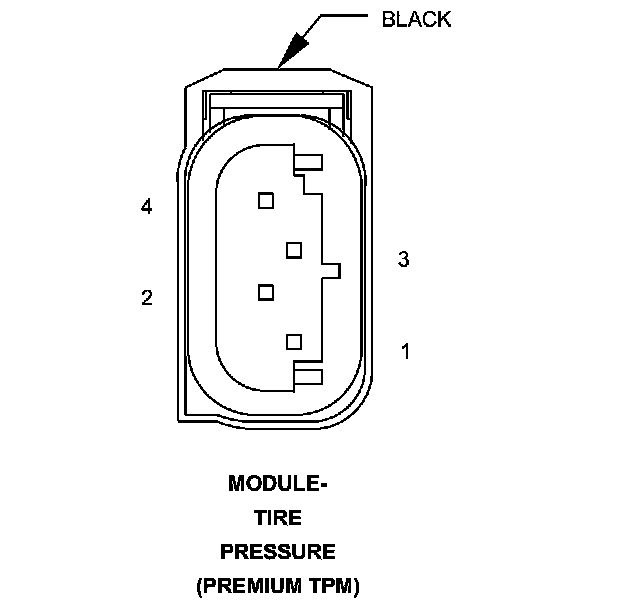

Connector (PREMIUM TPM) - (BODY) 4 WAY

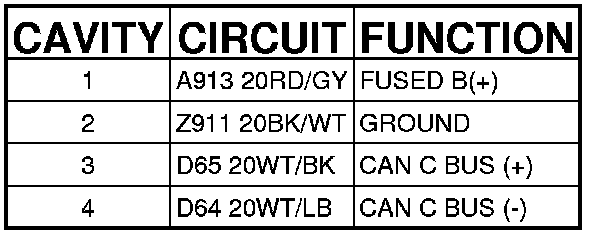

MODULE-TIRE PRESSURE (PREMIUM TPM) - (BODY) 4 WAY
