Seat Temperature Control Module
Seat Temperature Control Module

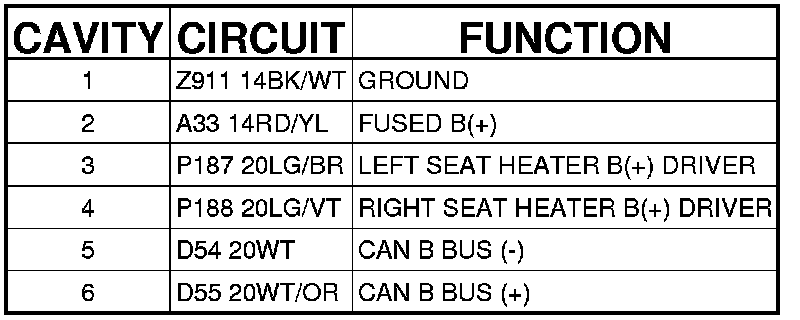

Connector - (BODY) 6 WAY

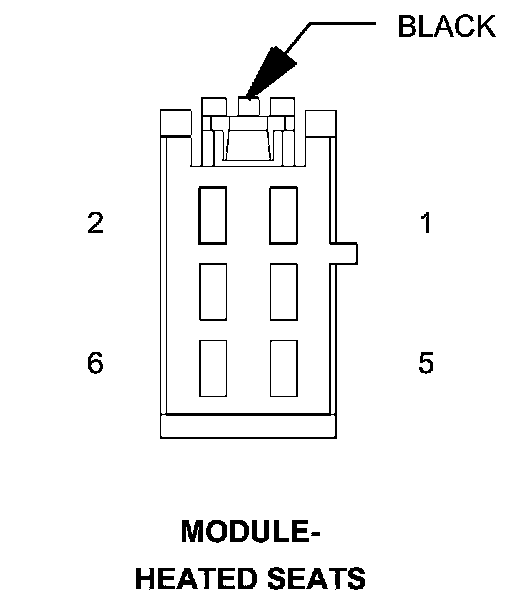

MODULE-HEATED SEATS - (BODY) 6 WAY
