Memory Positioning Switch
Memory Positioning Switch

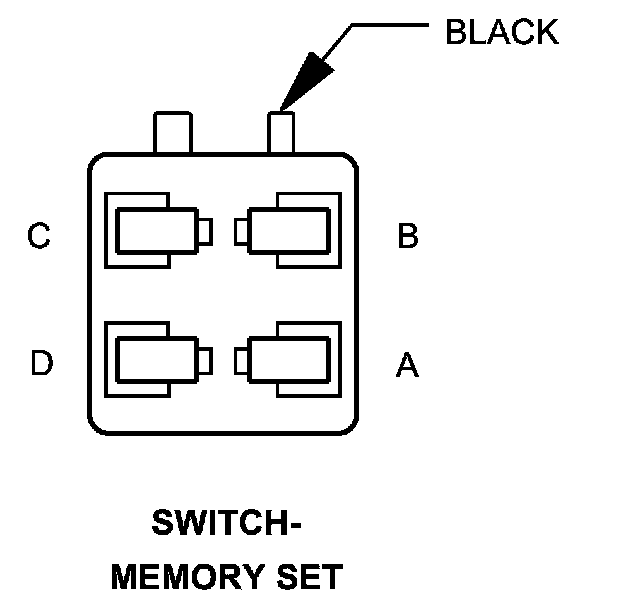

Connector - (FRONT DOOR) 4 WAY

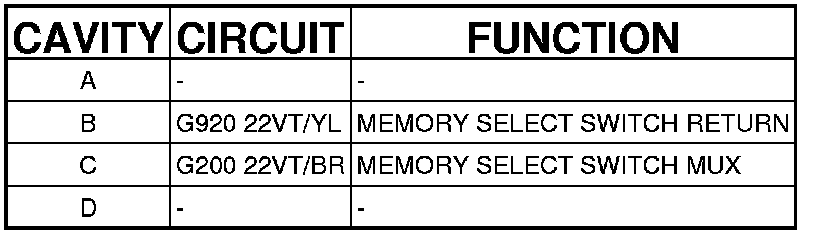

SWITCH-MEMORY SET - (FRONT DOOR) 4 WAY
